Stranded PVC Copper Cable 4 Core 35 mm, 0.6/1kV | RESCAB
Stranded Copper Power Cable (CU/PVC/PVC), 35 sq mm, 4 Core, 0.6/1 kV, produced by Red Sea Cables. With its PVC outer sheath, the cable offers superior water and moisture resistance, ensuring optimal performance in challenging conditions.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 35 mm2
- Number of wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 30 mm
- Max DC Conductor Resistance at 20°C: 0.524 ohm/km
- Weight: 1920 kg/km
- Standard Length: 1000 meters
- Phase Core Color: Red, Yellow, Blue, Black
- Standard: IEC 60502-1
Contact Us
Related products

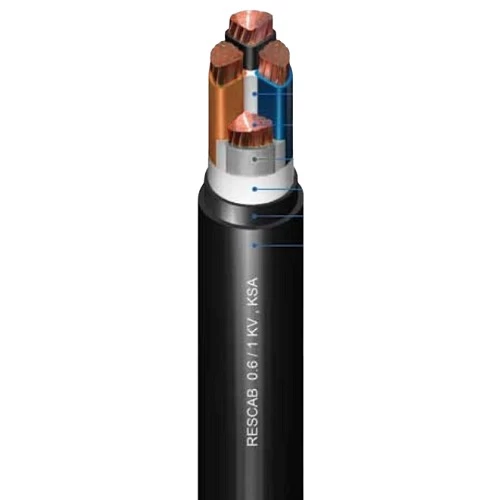

Stranded PVC Copper Cable 4 Core 35 mm, 0.6/1kV | RESCAB
Stranded Copper Electric Cable (CU/PVC/PVC), 35 sq mm, 4 Core, 0.6/1 kV, manufactured by RESCAB. It offers high durability with excellent resistance to environmental factors such as corrosion and impact, ensuring reliable performance in various environments.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 35 mm2
- Number of wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 30 mm
- Max DC Conductor Resistance at 20°C: 0.524 ohm/km
- Weight: 1920 kg/km
- Standard Length: 1000 meters
- Phase Core Color: Blue, Brown, Black, Grey
- Standard: BS 5467, 6346 Latest
