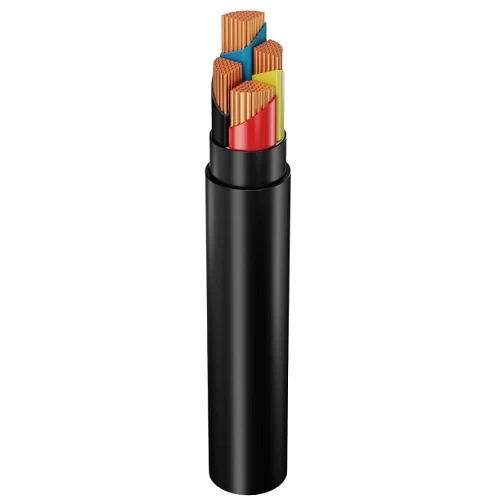

Stranded PVC Copper Cable 4 Core 300 mm, 0.6/1kV | Alfanar

Four core stranded copper power cable (CU/PVC/PVC/PVC), produced by Al Fanar Company, Current Rating Laid in Free Air 426 Ampere, PVC cables are a popular and efficient choice for electrical power delivery in various applications, size 300 mm2.

• Conductor Type: Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: Double PVC
• Voltage: 600/1000 volts
• Conductor Shape: Sectoral Stranded (sm)
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 300 mm2
• Max DC Conductor Resistance at 20°C: 0.0601 ohm/km
• Max AC Conductor Resistance at 70°C: 0.0780 ohm/km
• Current Rating Laid in Ground: 381 Ampere
• Current Rating Laid In Ducts: 310 Ampere
• Current Rating Laid in Free Air: 426 Ampere
• Approx Overall Diameter: 64.9 mm
• Weight: 13320 kg/km
• Phase Core Color: (red, yellow, blue, black)
• Standard: IEC 60502-1
