Stranded PVC Copper Cable 4 Core 25 mm, 300/500V | SCC

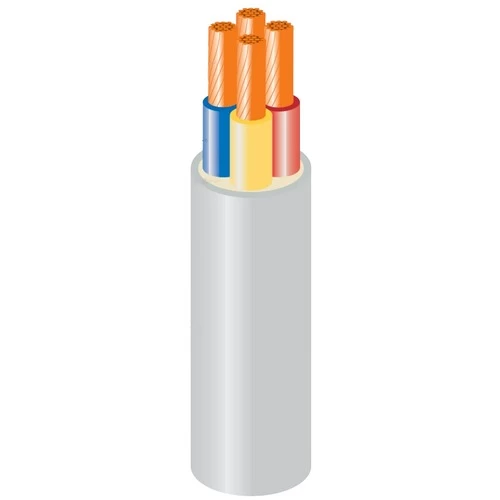

Stranded copper 4 core electric cable (CU/PVC/PVC), 25 sq mm cross section, low voltage 300/500V, PVC 85°C insulation with gray sheath, 1000 meters. Designed to safely handle high electrical currents. Manufactured by Saudi Cable Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 25mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.2 mm
- Nominal Sheath Thickness: 1.6 mm
- Overall Diameter: 26.0 mm
- Weight: 1445 kg/km
- Length: 1000 meter / Coil
- Insulation Color: (Red, Yellow, Blue, Black)
- Sheath Color: Grey
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CGH4-10H
Related products
Stranded PVC Copper Cable 4 Core 25 mm, 300/500V | SCC
Stranded copper 4 core electric cable (CU/PVC/PVC), 25 sq mm cross section, low voltage 300/500V, PVC 85°C insulation with black sheath, 1000 meters. Reliable power transmission performance under tough conditions. Manufactured by Saudi Cable Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 25mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.2 mm
- Nominal Sheath Thickness: 1.6 mm
- Overall Diameter: 26.0 mm
- Weight: 1445 kg/km
- Length: 1000 meter / Coil
- Insulation Color: (Red, Yellow, Blue, Black)
- Sheath Color: Black
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CGH4-10H
Related products
Stranded PVC Copper Cable 4 Core 25 mm, 300/500V | SCC
Stranded copper 4 core electric cable (CU/PVC/PVC), 25 sq mm cross section, low voltage 300/500V, PVC 70°C insulation with gray sheath, 1000 meters. High flexibility and ease of installation. Manufactured by Saudi Cable Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 70°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 25mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.2 mm
- Nominal Sheath Thickness: 1.6 mm
- Overall Diameter: 26.0 mm
- Weight: 1445 kg/km
- Length: 1000 meter / Coil
- Insulation Color: (Red, Yellow, Blue, Black)
- Sheath Color: Grey
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CBH4-10H
Related products
Stranded PVC Copper Cable 4 Core 25 mm, 300/500V | SCC
Stranded copper 4 core electric cable (CU/PVC/PVC), 25 sq mm cross section, low voltage 300/500V, PVC 70°C insulation with black sheath, 1000 meters. Enhanced protection against corrosion and environmental factors. Manufactured by Saudi Cable Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 25mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.2 mm
- Nominal Sheath Thickness: 1.6 mm
- Overall Diameter: 26.0 mm
- Weight: 1445 kg/km
- Length: 1000 meter / Coil
- Insulation Color: (Red, Yellow, Blue, Black)
- Sheath Color: Black
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CBH4-10H
