Stranded PVC Copper Cable 4 Core 25 mm, 0.6/1kV | Alfanar

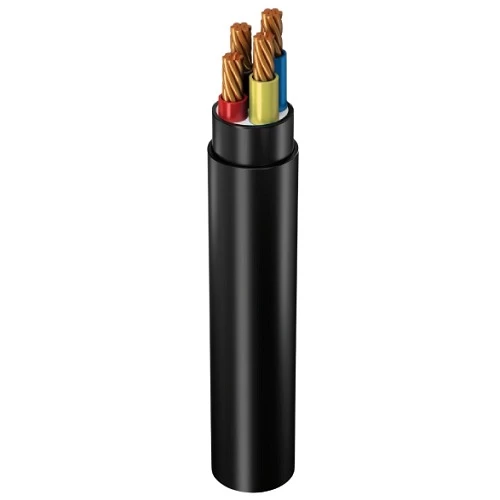

Four core stranded copper power cable (CU/PVC/PVC/PVC), The outer jacket prevents harmful sunlight from damaging the cable, produced by Al Fanar Company, size 25 mm2.

• Conductor Type: Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: Double PVC
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 25 mm2
• Max DC Conductor Resistance at 20°C: 0.7270 ohm/km
• Max AC Conductor Resistance at 70°C: 0.8703 vohm/km
• Current Rating Laid in Ground: 105 Ampere
• Current Rating Laid In Ducts: 75 Ampere
• Current Rating Laid in Free Air: 98 Ampere
• Approx Overall Diameter: 26.1 mm
• Weight: 1430 kg/km
• Phase Core Color: (red, yellow, blue, black)
• Standard: IEC 60502-1
