Stranded PVC Copper Cable 4 Core 240 mm, 0.6/1kV | SCC

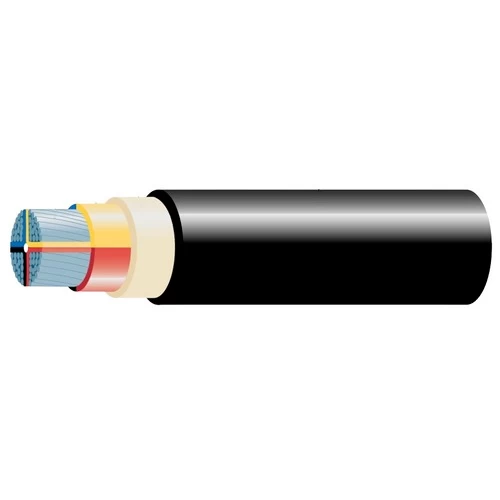

Unarmored stranded copper power cable (CU/PVC/PVC), 4 cores, 240mm², low voltage 0.6/1kV, suitable for power plants and heavy industries, delivers high reliability in current transmission and resists corrosion from harsh environmental conditions. Produced by Saudi Cables Company.
- Conductor: Stranded Copper
- Insulation Material: Heat resistant PVC type 5 to BS6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC 502
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 240 mm2
- Number of wires: 34
- Nominal Insulation Thickness: 2.2 mm
- Nominal Sheath Thickness: 2.9 mm
- Approx Overall Diameter: 56.5 mm
- Weight: 10520 kg/km
- Standard Length: 250 meters
- Insulation Colors: Red, Yellow, Blue, Black
- Sheath Color: Black
- Standard: IEC: 502
- Catalogue Number: FJH4-23A
