Stranded PVC Copper Cable 4 Core 2.5 mm, 300/500V | Alfanar

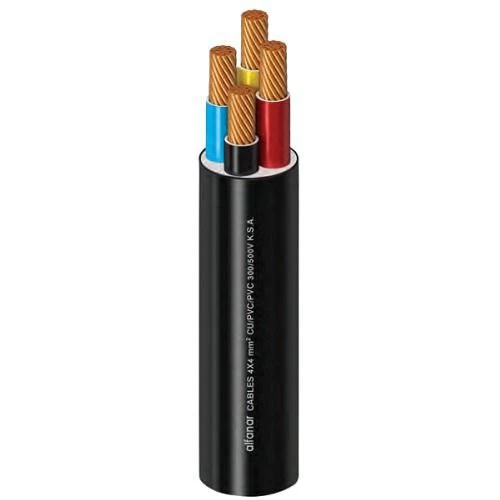

Electric cable 2.5 mm2 , 4 core  300/500V, stranded copper PVC insulation and sheath, the outer jacket provides protection for the cable from corrosion and external factors, insulation color (red, yellow, blue, black), from Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed stranded copper conductor class 2 as per IEC 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Cable Type: (H05VV-R)
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 2.5 mm2
• Number of Wires: 7
• Wire Diameter: 0.67 mm
• Nominal Insulation Thickness: 0.8 mm
• Thickness of Inner Covering: 0.4 mm
• Nominal Sheath Thickness: 1.2 mm
• Overall Diameter: 12 mm
• Weight: 245 kg/km
• Standard Packing Length: 1000 meters on wooden drum (Other lengths are available upon request)
• Insulation Color: (Red, Yellow, Blue, Black)
• Standard: IEC 60227-4
