Stranded PVC Copper Cable 4 Core 2.5 mm, 0.6/1kV | SCC

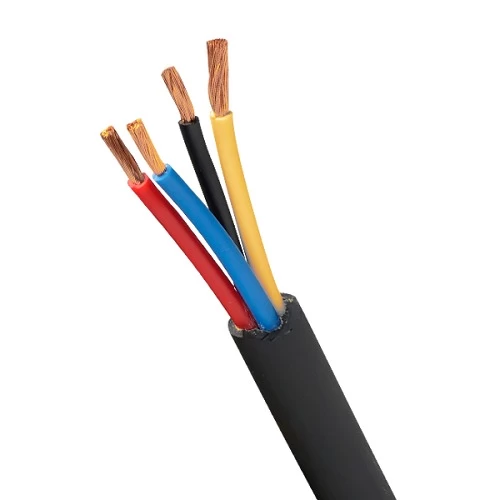

Unarmored stranded copper cable (CU/PVC/PVC), 4 cores, 2.5mm², 0.6/1 kV voltage, offers good load capacity with high resistance to moisture and chemicals, ensuring long-term safety of connections. Produced by Saudi Cables Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 1 to BS6746 rated 70°C
- Outer Sheath: PVC type ST2 to IEC 502
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 2.5 mm2
- Number of wires: 7
- Nominal Insulation Thickness: 0.8 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 14.9 mm
- Weight: 310 kg/km
- Standard Length: 1000 meters
- Insulation Colors: Red, Yellow, Blue, Black
- Sheath Color: Black
- Standard: IEC: 502
- Catalogue Number: CJH4-05A
Contact Us
