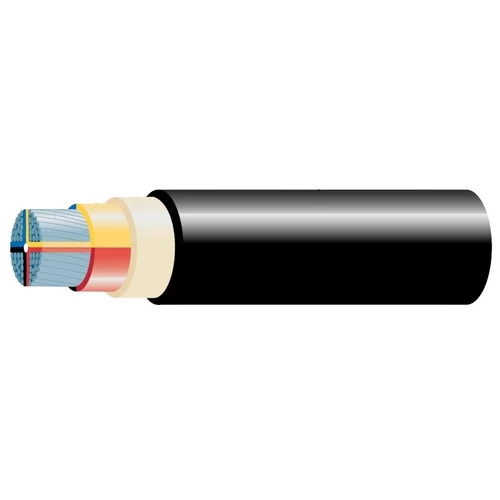

Stranded PVC Copper Cable 4 Core 185 mm, 0.6/1kV | SCC
Unarmored stranded copper power cable (CU/PVC/PVC), 4 cores, 185mm², low voltage 0.6/1 kV, used in critical power systems with high operational efficiency, Produced by Saudi Cables Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 1 to BS6746 rated 70°C
- Outer Sheath: PVC type ST2 to IEC 502
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 185 mm2
- Number of wires: 30
- Nominal Insulation Thickness: 2.0 mm
- Nominal Sheath Thickness: 2.7 mm
- Approx Overall Diameter: 50.3 mm
- Weight: 8095 kg/km
- Standard Length: 250 meters
- Insulation Colors: Red, Yellow, Blue, Black
- Sheath Color: Black
- Standard: IEC: 502
- Catalogue Number: FJH4-22A
