Stranded PVC Copper Cable 4 Core 185 mm, 0.6/1kV | BAHRA

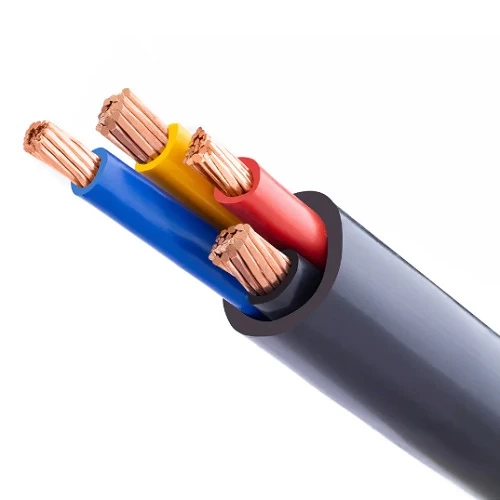

Stranded copper power unarmored cable (CU/PVC/PVC), 4 core, 185mm2 size conductor, Low Voltage 0.6/1kV, The outer sheath made of high quality PVC resists yellowing from exposure to sunlight and ozone, manufactured by Bahra Cables Company, insulation color (red, yellow, blue, black).

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 185 mm2
• Number of wires: 37
• Nominal Insulation Thickness: 2 mm
• Nominal Sheath Thickness: 2.6 mm
• Approx Overall Diameter: 40.6 mm
• Weight: 7843 kg/km
• Standard Packaging Cable: 250 meters
• Phase Core Colors: (Red, Yellow, Blue, Black)
• Standard: IEC 60502-1
