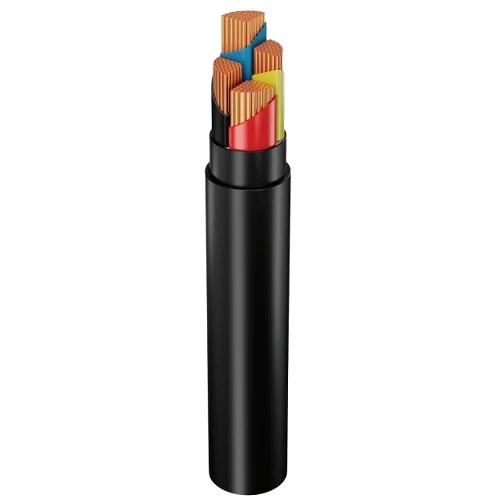

Stranded PVC Copper Cable 4 Core 185 mm, 0.6/1kV | Alfanar

Four core stranded copper power cable (CU/PVC/PVC/PVC), Low voltage 600/1000V, PVC cables are durable, economical and reliable in performance, produced by Al Fanar Company, size 185 mm2.

• Conductor Type: Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: Double PVC
• Voltage: 600/1000 volts
• Conductor Shape: Sectoral Stranded (sm)
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 185 mm2
• Max DC Conductor Resistance at 20°C: 0.0991 ohm/km
• Max AC Conductor Resistance at 70°C: 0.1224 ohm/km
• Current Rating Laid in Ground: 292 Ampere
• Current Rating Laid In Ducts: 232 Ampere
• Current Rating Laid in Free Air: 311 Ampere
• Approx Overall Diameter: 52.5 mm
• Weight: 8310 kg/km
• Phase Core Color: (red, yellow, blue, black)
• Standard: IEC 60502-1
