Stranded PVC Copper Cable 4 Core 120 mm, 0.6/1kV | BAHRA

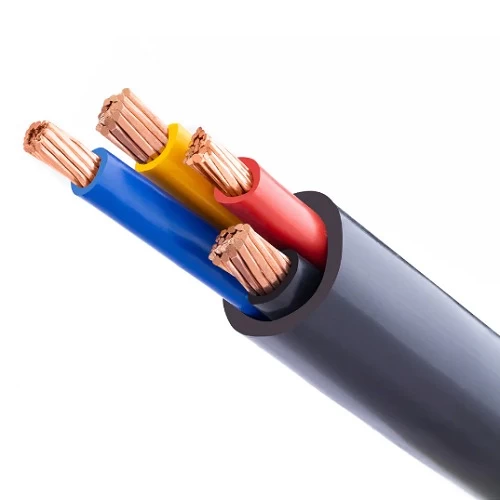

Stranded copper power unarmored cable (CU/PVC/PVC), 4 core, 120mm2 size conductor, Low Voltage 0.6/1kV, The cable resists the effects of mild acids and alkalis, making it suitable for use in certain industrial environments. Produced by Bahra Cables Company. Insulation color (red, yellow, blue, black).

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 120 mm2
• Number of wires: 37
• Nominal Insulation Thickness: 1.6 mm
• Nominal Sheath Thickness: 2.3 mm
• Approx Overall Diameter: 39.6 mm
• Weight: 5177 kg/km
• Standard Packaging Cable: 500 meters
• Phase Core Colors: (Red, Yellow, Blue, Black)
• Standard: IEC 60502-1
