Stranded PVC Copper Cable 4 Core 10 mm, 0.6/1kV | Red Sea Cables

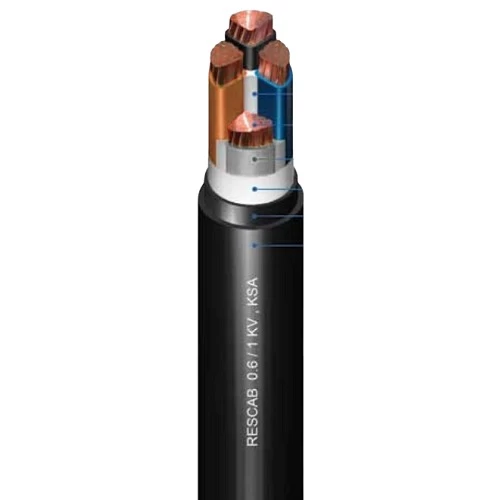

Stranded Copper Electric Cable (CU/PVC/PVC), 4 Core, 10 sq mm, 0.6/1 kV, produced by RESCAB. This cable offers reliable protection against moisture and external factors, thanks to its PVC insulation layer that ensures optimal performance in various conditions.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4
• Conductor Size (Cross-Sectional Area): 10 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 21 mm
• Max DC Conductor Resistance at 20°C: 1.83 ohm/km
• Weight: 820 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Blue, Brown, Black, Grey
• Standard: BS 5467, 6346 Latest
