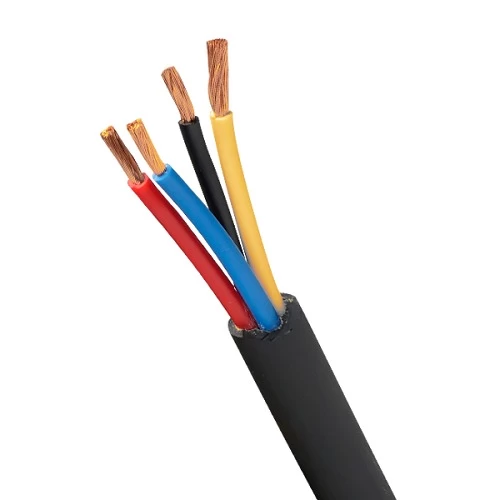

Stranded PVC Copper Cable 4 Core 1.5 mm, 0.6/1kV | SCC
Unarmored stranded copper power cable (CU/PVC/PVC), 4 cores, 1.5mm², low voltage 0.6/1 kV, offers high flexibility allowing easy installation in tight spaces, provides excellent insulation preventing current leakage and protects against electrical and mechanical shocks, suitable for indoor and outdoor use, Produced by Saudi Cables Company.
- Conductor: Stranded Copper
- Insulation Material: Heat resistive PVC type 5 to BS6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC 502
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 1.5 mm2
- Number of wires: 7
- Nominal Insulation Thickness: 0.8 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 13.9 mm
- Weight: 255 kg/km
- Standard Length: 1000 meters
- Insulation Colors: Red, Yellow, Blue, Black
- Sheath Color: Black
- Standard: IEC: 502
- Catalogue Number: CJH4-04A
