Stranded PVC Copper Cable 4.5 Core 4×70+35 mm, 0.6/1kV | BAHRA

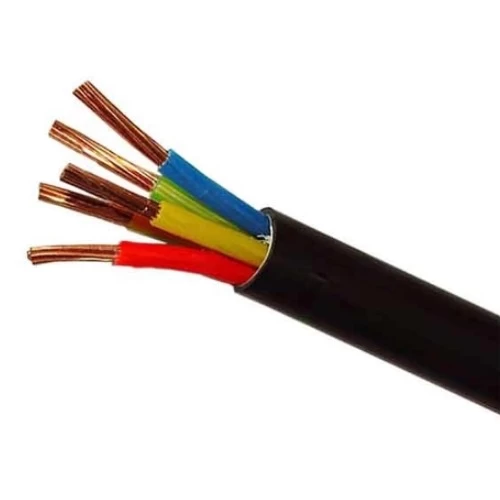

Unarmored Stranded copper power cable (CU/PVC/PVC), 4.5 core, 4×70+35mm2 size conductor, Low Voltage 0.6/1kV, Double PVC insulation ensures high resistance to water and moisture, making the cable suitable for use in wet locations. Produced by Bahra Cables Company. Insulation color (red, yellow, blue, black, green/yellow).
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4 Core + Neutral Line
- Conductor Size (Cross-Sectional Area): ( 4cx70 mm2 ) + 35mm2
- Number of Phase Wires: 19
- Number of Neutral Wires: 7
- Nominal Insulation Thickness of Phase: 1.4 mm
- Nominal Insulation Thickness of Neutral: 1.2 mm
- Nominal Sheath Thickness: 2 mm
- Approx Overall Diameter: 31.4 mm
- Weight: 2718 kg/km
- Length : 1000 meters
- Phase Core Colors: (Red, Yellow, Blue, Black, Green/Yelllow)
- Standard: IEC 60502-1
Contact Us
Related products
Stranded PVC Copper Cable 4.5 Core 4×70+35 mm, 0.6/1kV | BAHRA

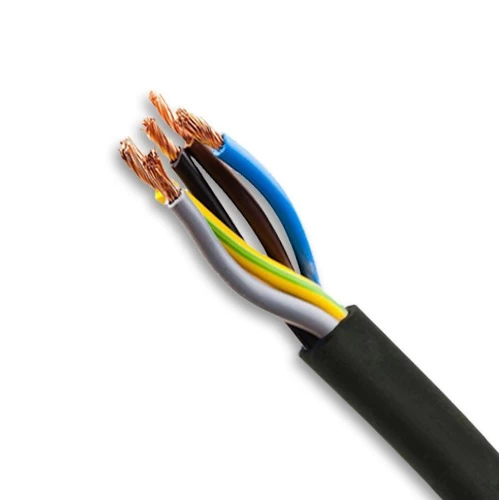

Unarmored Stranded copper power cable (CU/PVC/PVC), 4.5 core, 4×70+35mm2 size conductor, Low Voltage 0.6/1kV, The cable ensures high efficiency in work, thanks to its innovative design that combines ease of repair and light weight that is easy to handle, color (blue, brown, black gray, green/yellow), manufactured by Bahra Cables Company.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4 Core + Neutral Line
- Conductor Size (Cross-Sectional Area): ( 4cx70 mm2 ) + 35mm2
- Number of Phase Wires: 19
- Number of Neutral Wires: 7
- Nominal Insulation Thickness of Phase: 1.4 mm
- Nominal Insulation Thickness of Neutral: 1.2 mm
- Nominal Sheath Thickness: 2 mm
- Approx Overall Diameter: 31.4 mm
- Weight: 2718 kg/km
- Length : 1000 meters
- Phase Core Colors: (Blue, Brown, Black Grey, Green/Yellow)
- Standard: BS 5467
