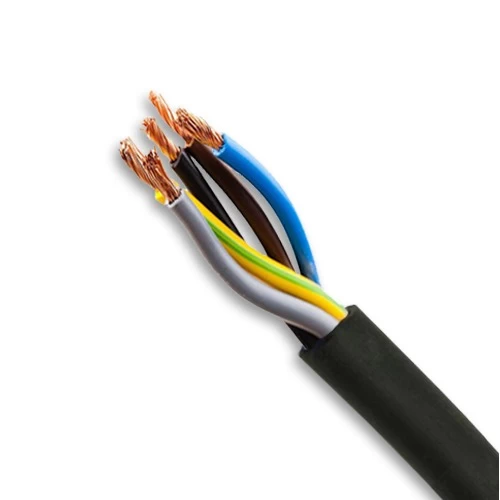

Stranded PVC Copper Cable 4.5 Core 4×500+240 mm, 0.6/1kV | BAHRA
Unarmored Stranded copper power cable (CU/PVC/PVC), 4.5 core, 4×500+240mm2 size conductor, Low Voltage 0.6/1kV, Easy-to-repair cable design reduces maintenance costs and increases cable life, Color (Blue, Brown, Black Grey, Green/Yellow), Manufactured by Bahra Cables.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4 Core + Neutral Line
- Conductor Size (Cross-Sectional Area): ( 4cx500 mm2 ) + 240mm2
- Number of Phase Wires: 61
- Number of Neutral Wires: 61
- Nominal Insulation Thickness of Phase: 2.8 mm
- Nominal Insulation Thickness of Neutral: 2.2 mm
- Nominal Sheath Thickness: 3.5 mm
- Approx Overall Diameter: 75.8 mm
- Weight: 18012 kg/km
- Length : 250 meters
- Phase Core Colors: (Blue, Brown, Black Grey, Green/Yellow)
- Standard: BS 5467
Contact Us
Related products

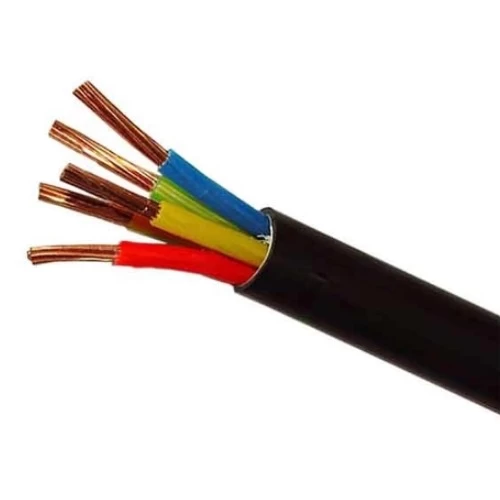

Stranded PVC Copper Cable 4.5 Core 4×500+240 mm, 0.6/1kV | BAHRA
Unarmored Stranded copper power cable (CU/PVC/PVC), 4.5 core, 4×500+240mm2 size conductor, Low Voltage 0.6/1kV, The cable is easy to carry and transport thanks to its light weight. It is manufactured by Bahra Cables Company. The insulation color is (red, yellow, blue, black, green/yellow).
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4 Core + Neutral Line
- Conductor Size (Cross-Sectional Area): ( 4cx500 mm2 ) + 240mm2
- Number of Phase Wires: 61
- Number of Neutral Wires: 61
- Nominal Insulation Thickness of Phase: 2.8 mm
- Nominal Insulation Thickness of Neutral: 2.2 mm
- Nominal Sheath Thickness: 3.5 mm
- Approx Overall Diameter: 75.8 mm
- Weight: 18012 kg/km
- Length : 250 meters
- Phase Core Colors: (Red, Yellow, Blue, Black, Green/Yelllow)
- Standard: IEC 60502-1
