Stranded PVC Copper Cable 4.5 Core 4×120+70 mm, 0.6/1kV | BAHRA

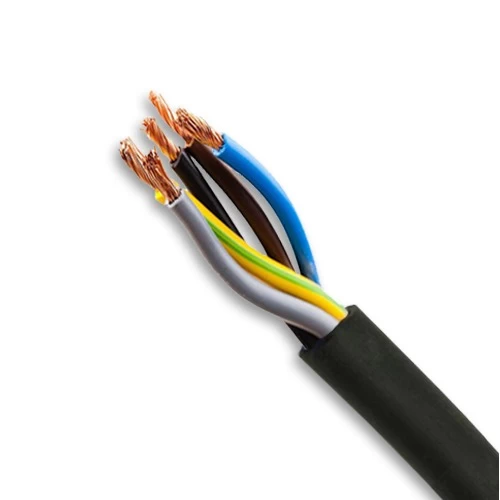

Unarmored Stranded copper power cable (CU/PVC/PVC), 4.5 core, 4×120+70mm2 size conductor, Low Voltage 0.6/1kV, The cable is designed to be easy to use and maintain, it can be easily repaired and its light weight makes it easy to transport and install anywhere, color (blue, brown, black gray, green/yellow), manufactured by Bahra Cables Company.

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 4 Core + Neutral Line
• Conductor Size (Cross-Sectional Area): ( 4cx120 mm2 ) + 70mm2
• Number of Phase Wires: 37
• Number of Neutral Wires: 19
• Nominal Insulation Thickness of Phase: 1.6 mm
• Nominal Insulation Thickness of Neutral: 1.4 mm
• Nominal Sheath Thickness: 2.3 mm
• Approx Overall Diameter: 39.4 mm
• Weight: 4676 kg/km
• Length : 500 meters
• Phase Core Colors: (Blue, Brown, Black Grey, Green/Yellow)
• Standard: BS 5467
