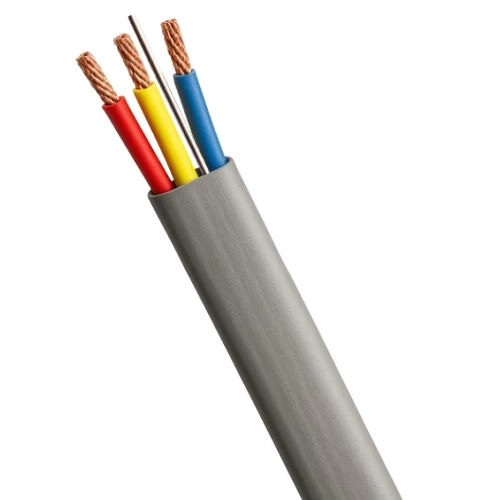

Stranded PVC Copper Cable 3 Core Flat and Earth 4 mm, 300/500V, PVC 85°C Insulation, Gray Color, 50 M | Saudi Cable Company

Stranded copper electrical flat cable with earth conductor (CU/PVC/PVC), low voltage 300/500V, gray color, produced by Saudi Cable Company (SCC). Insulated and sheathed with PVC 85°C, the first layer provides excellent electrical insulation.

• Conductor: Stranded Copper
• Insulation Material: PVC type 5 to BS:6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 4mm2
• Number of Wires: 7
• Earth Continuity Conductor (no.xmm): 1×1.38 mm
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.1 mm
• Overall Diameter: 18.0×7.4 mm
• Weight: 250 kg/km
• Length: 50 meter / Coil
• Insulation Color: (Red, Yellow, Blue)
• Sheath Color: Gray
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: CGG3-06H
