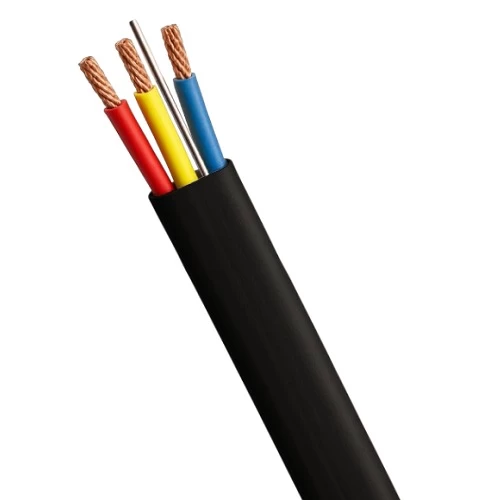

Stranded PVC Copper Cable 3 Core Flat and Earth 16 mm, 300/500V, PVC 70°C Insulation, Black Color, 2000 M | Saudi Cable Company

Stranded copper flat cable with earth conductor (CU/PVC/PVC), 16mm, 70°C insulation, black sheath, 2000 meters/coil, low voltage 300/500V. Manufactured by Saudi Cable Company (SCC), the sheath protects against environmental factors.

• Conductor: Stranded Copper
• Insulation Material: PVC type 5 to BS:6746 rated 70°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 16mm2
• Number of Wires: 7
• Earth Continuity Conductor (no.xmm): 7×1.02mm
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.3 mm
• Overall Diameter: 29.5×11.0 mm
• Weight: 760 kg/km
• Length: 2000 meter / Coil
• Insulation Color: (Red, Yellow, Blue)
• Sheath Color: Black
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: CBG3-09H
