Stranded PVC Copper Cable 3 Core Flat and Earth 10 mm, 300/500V, PVC 85°C Insulation, Black Color, 1000 M | Saudi Cable Company

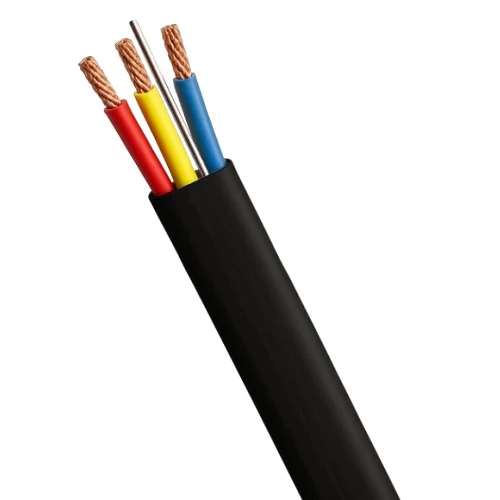

Stranded copper electrical flat cable with earth conductor (CU/PVC/PVC), 10mm, 85°C insulation, black sheath, 1000m length, low voltage 300/500V. Manufactured by Saudi Cable Company (SCC). PVC insulation ensures excellent protection against electrical currents, while the sheath adds additional protection against environmental factors.

• Conductor: Stranded Copper
• Insulation Material: PVC type 5 to BS:6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 10mm2
• Number of Wires: 7
• Earth Continuity Conductor (no.xmm): 7×0.84mm
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.2 mm
• Overall Diameter: 25.5×9.6 mm
• Weight: 522 kg/km
• Length: 1000 meter / Coil
• Insulation Color: (Red, Yellow, Blue)
• Sheath Color: Black
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: CGG3-08H
