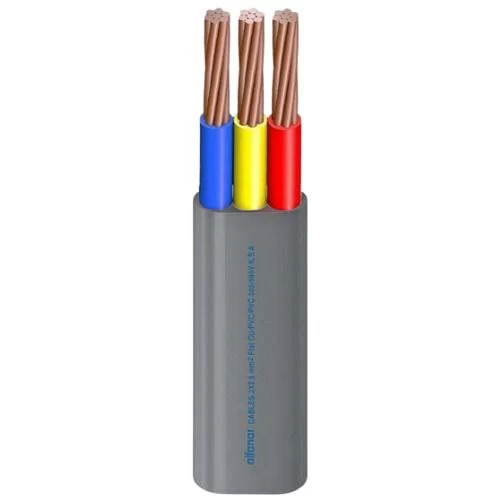

Stranded PVC Copper Cable 3 Core Flat 2.5 mm, 300/500V | Alfanar

Stranded copper fat electric cable 2.5 mm2 size three core, 300/500 volts, PVC insulated and sheathed, insulation color (red, yellow, blue), versatile cable for powering fixed electrical equipment and appliances in various buildings, produced by Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed stranded copper conductor class 2 as per BS EN 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 2.5 mm2
• Number of Wires: 7
• Wire Diameter: 0.67 mm
• Nominal Insulation Thickness: 0.8 mm
• Thickness of Inner Covering: 1 mm
• Approx. Overall Diameter: 5.6 × 12.8 mm
• Weight: 160 kg/km
• Standard Length: 100, 80, 50, 40 yard coil (other lengths available upon request)
• Insulation Color: (Red, Yellow, Blue)
• Standard: BS 6004
