Stranded PVC Copper Cable 3 Core Flat 1.5 mm, 300/500V | Alfanar

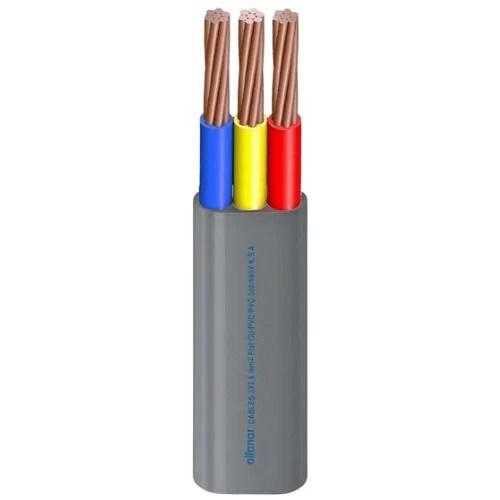

Stranded electrical copper flat cable three core (CU/PVC/PVC), 1.5 mm2 cross-sectional area, low voltage 300/500V, the polyvinyl chloride (PVC) insulation material provides excellent electrical insulation, phase core color (red, yellow, blue), produced by Alfanar Company.

• Conductor: Copper
• Conductor Shape: Plain annealed stranded copper conductor class 2 as per BS EN 60228
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 1.5 mm2
• Number of Wires: 7
• Wire Diameter: 0.52 mm
• Nominal Insulation Thickness: 0.7 mm
• Thickness of Inner Covering: 0.9 mm
• Approx. Overall Diameter: 4.8 ×10.7 mm
• Weight: 105 kg/km
• Standard Length: 100, 80, 50, 40 yard coil (other lengths available upon request)
• Insulation Color: (Red, Yellow, Blue)
• Standard: BS 6004
