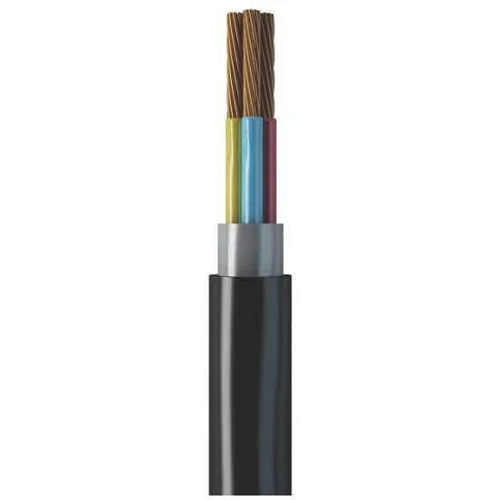

Stranded PVC Copper Cable 3 Core 6 mm, 600/1000V

Three core stranded copper cable (CU/PVC/PVC), The thickness of the insulation layer is 1 mm, and it has high resistance to water and moisture, making it suitable for indoor and outdoor uses, produced by Jeddah Company, size 6 mm2.

• Conductor Type: Copper
• Insulation Material: PVC Compound (Polyvinyl Chloride)
• Bedding: PVC Compound (or LSHF or PE)
• Jacketing: PVC Compound (or LSHF or PE)
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 6 mm2
• Nominal Insulation Thickness: 1 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 16.7 mm
• Weight: 480 kg/km
• Max DC Conductor Resistance at 20°C: 3.080 ohm/km
• Current Rating Laid in Ground: 61 Ampere
• Current Rating Laid in Ducts: 50 Ampere
• Current Rating Laid in Free Air: 49 Ampere
• Phase Core Colors: (red, yellow, blue)
• Standard: IEC 60502-1
