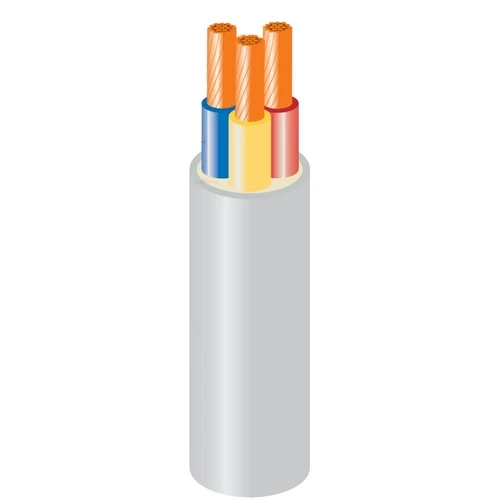

Stranded PVC Copper Cable 3 Core 6 mm, 300/500V, PVC 85°C Insulation, Gray Color, 50 M | Saudi Cable Company

Stranded copper 3 core cable (CU/PVC/PVC), 6 sq mm cross section, low voltage 300/500V, PVC 85°C insulation with gray sheath, 50 meters. Provides excellent corrosion protection, suitable for indoor and outdoor use. Manufactured by Saudi Cable Company.

• Conductor: Stranded Copper
• Insulation Material: PVC type 5 to BS:6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 6mm2
• Number of Wires: 7
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.4 mm
• Overall Diameter: 14.3 mm
• Weight: 352 kg/km
• Length: 50 meter / Coil
• Insulation Color: (Red, Yellow, Blue)
• Sheath Color: Grey
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: CGH3-07H
