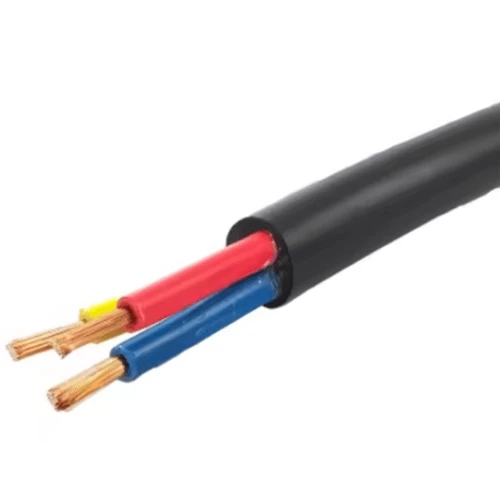

Stranded PVC Copper Cable 3 Core 500 mm, 0.6/1kV | SCC

Unarmored stranded copper power cable (CU/PVC/PVC), 3 cores, 500mm², low voltage 0.6/1 kV, features strong insulation against heat and moisture and long-lasting durability, Produced by Saudi Cables Company.

• Conductor: Stranded Copper (sm)
• Insulation Material: PVC type 1 to BS6746 rated 70°C
• Outer Sheath: PVC type ST2 to IEC 502
• Voltage: 0.6/1kV
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 500 mm2
• Number of wires: 53
• Nominal Insulation Thickness: 2.8 mm
• Nominal Sheath Thickness: 3.4 mm
• Approx Overall Diameter: 68.4 mm
• Weight: 16250 kg/km
• Standard Length: 250 meters
• Insulation Colors: Red, Yellow, Blue
• Sheath Color: Black
• Standard: IEC: 502
• Catalogue Number: FJH3-28A
