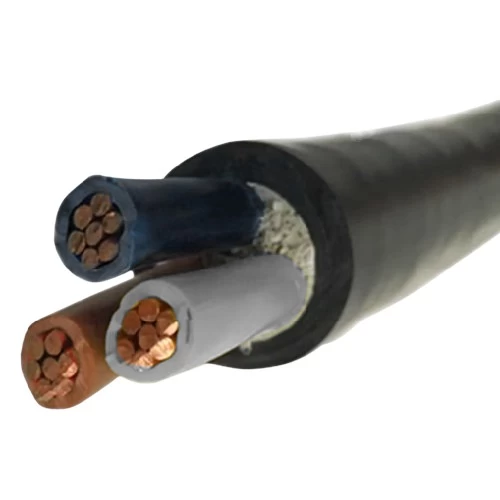

Stranded PVC Copper Cable 3 Core 500 mm, 0.6/1kV, 250 M | BAHRA
Electrical Cable 500 mm 3 Phase 0.6/1kV CU/PVC/PVC, Stranded Copper, 250 M Length, Available in a variety of sizes and colors, at the best prices and highest quality, produced by Bahra Cables Company.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3 Core
- Conductor Size (Cross-Sectional Area): 500 mm2
- Number of Wires: 61
- Nominal Insulation Thickness: 2.8 mm
- Nominal Sheath Thickness: 3.4 mm
- Approx Overall Diameter: 80.5 mm
- Weight: 16250 kg/km
- Standard Length: 250 meters
- Phase Core Colors: Brown, Black, Grey
- Standard: BS 5467
Contact Us
Related products
Stranded PVC Copper Cable 3 Core 500 mm, 0.6/1kV, 250 M | BAHRA
Electric Cable 500 sq mm 3 Core 0.6/1kV CU/PVC/PVC, Stranded Copper, 250 meter Length, PVC cables are widely used in electricity conduction due to their efficiency and effectiveness in various applications. It features economical cost, reliable performance, and durability, making it ideal for use, produced by BAHRA Cables Company.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3 Core
- Conductor Size (Cross-Sectional Area): 500 mm2
- Number of Wires: 61
- Nominal Insulation Thickness: 2.8 mm
- Nominal Sheath Thickness: 3.4 mm
- Approx Overall Diameter: 80.5 mm
- Weight: 16250 kg/km
- Standard Length: 250 meters
- Phase Core Colors: Red, Yellow, Blue
- Standard: IEC 60502-1
Contact Us
