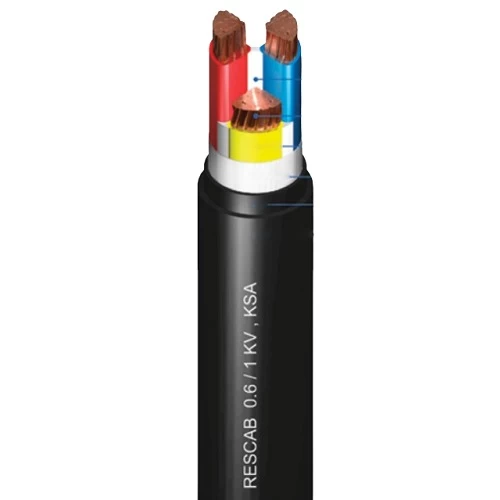

Stranded PVC Copper Cable 3 Core 400 mm, 0.6/1kV, 250 M | RESCAB
Stranded copper power cable (CU/PVC/PVC), 3 phase, 400mm2 size conductor, 0.6/1kV, It is an ideal choice for applications requiring high electrical conductivity, excellent insulation and resistance to harsh environmental conditions, produced by Red Sea Cables Company (RESCAB).
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 400 mm2
- Number of wires: 61
- Nominal Insulation Thickness: 2.6 mm
- Nominal Sheath Thickness: 3.1 mm
- Approx Overall Diameter: 73 mm
- Max DC Conductor Resistance at 20°C: 0.0470ohm/km
- Weight: 13770 kg/km
- Standard Length: 250 meters
- Phase Core Color: Red, Yellow, Blue
- Standard: IEC 60502-1
