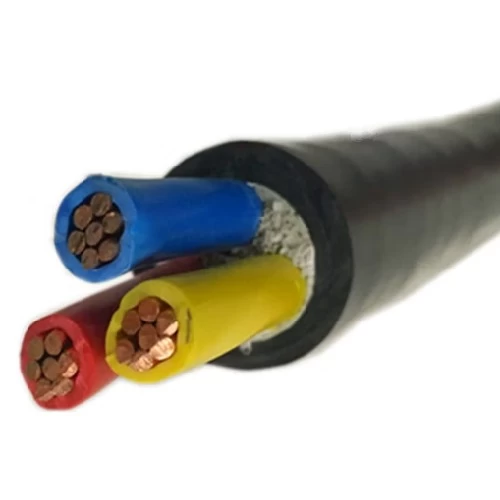

Stranded PVC Copper Cable 3 Core 400 mm, 0.6/1kV, 250 M | BAHRA
Power Cable 400 mm Three Core 0.6/1kV CU/PVC/PVC, Stranded Copper, 250 meter/Drum, Available in a variety of colors and sizes, with the highest quality and best prices, produced by Bahra Cables Company.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3 Core
- Conductor Size (Cross-Sectional Area): 400 mm2
- Number of Wires: 61
- Nominal Insulation Thickness: 2.6 mm
- Nominal Sheath Thickness: 3.1 mm
- Approx Overall Diameter: 72.8 mm
- Weight: 12650 kg/km
- Standard Length: 250 meters
- Phase Core Colors: Brown, Black, Grey
- Standard: BS 5467
