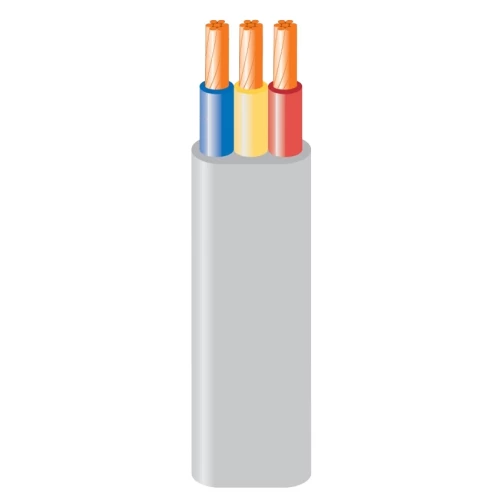

Stranded PVC Copper Cable 3 Core 4 mm, 300/500V, PVC 85°C Insulation, Gray Color, 100 M | Saudi Cable Company

Stranded copper flat cable, 3-core, 2.5mm² (CU/PVC/PVC), insulated up to 85°C with a grey PVC sheath that offers high protection against environmental factors. Ideal for industrial and commercial applications. Supplied in 100-meter rolls. Produced by Saudi Cable Company.

• Conductor: Stranded Copper
• Insulation Material: PVC type 5 to BS:6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC:502
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 4mm2
• Number of Wires: 7
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.1 mm
• Overall Diameter: 16.5×7.4 mm
• Weight: 216 kg/km
• Length: 100 meter / Coil
• Insulation Color: (Red, Yellow, Blue)
• Sheath Color: Grey
• Standards: SASO:55 specification and similar to BS:6004-1984 specification
• Catalogue Number: CGF3-06H
