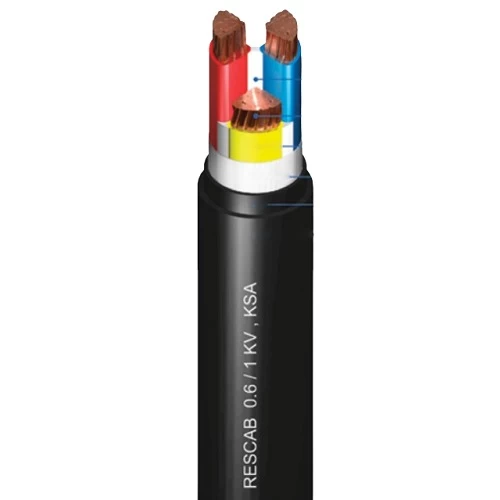

Stranded PVC Copper Cable 3 Core 4 mm, 0.6/1kV, 1000 M | RESCAB

Stranded copper power cable (CU/PVC/PVC), 3 phase, 4mm2 size conductor, 0.6/1kV, Electrical insulation enhances its performance and maintains its efficiency in the long term, produced by Red Sea Cables Company (RESCAB).

• Conductor: Stranded Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 4 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 1.0 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 16 mm
• Max DC Conductor Resistance at 20°C: 4.61 ohm/km
• Weight: 405 kg/km
• Standard Length: 1000 meters
• Phase Core Color: Red, Yellow, Blue
• Standard: IEC 60502-1
