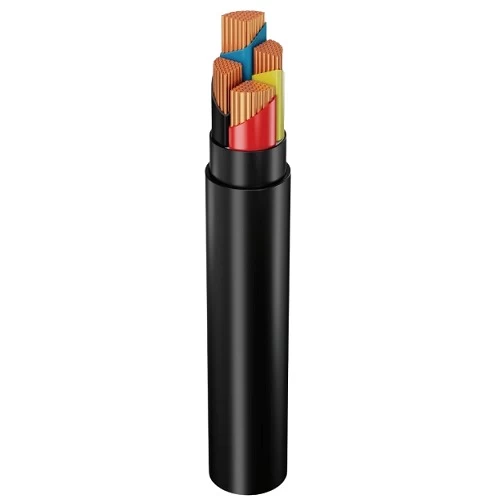

Stranded PVC Copper Cable 3 Core 3×50+25mm, 0.6/1kV | Alfanar

3.5 core stranded copper power cable (CU/PVC/PVC/PVC), It has many advantages, its cost is economical, its performance is reliable, and its durability is high, produced by Al Fanar Company, size 3×50+25 mm2.

• Conductor Type: Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: Double PVC
• Voltage: 600/1000 volts
• Conductor Shape: Sectoral Stranded (sm)
• Number of Cores: 3.5 (3 Core + Neutral Line)
• Conductor Size (Cross-Sectional Area): (3×50)+25 mm2
• Max DC Conductor Resistance at 20°C: 0.3870 / 0.7270 ohm/km
• Max AC Conductor Resistance at 70°C: 0.4639 / 0.8703ohm/km
• Current Rating Laid in Ground: 139 Ampere
• Current Rating Laid In Ducts: 103 Ampere
• Current Rating Laid in Free Air: 131 Ampere
• Approx Overall Diameter: 30.7 mm
• Weight: 2155 kg/km
• Phase Core Color: (red, yellow, blue, black)
• Standard: IEC 60502-1
