Stranded PVC Copper Cable 3 Core 3×185+95mm, 0.6/1kV | Alfanar

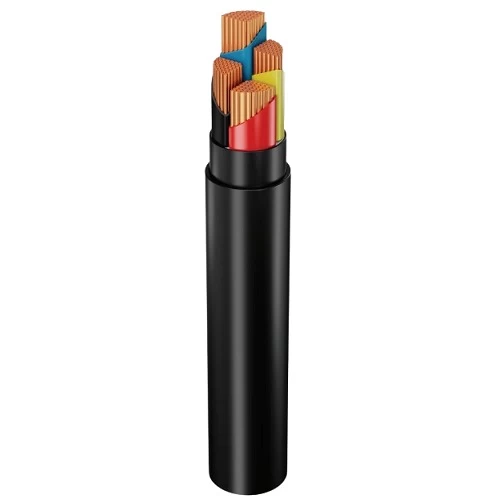

3.5 core stranded copper power cable (CU/PVC/PVC/PVC), Insulation color (red, yellow, blue, black), suitable for indoor and outdoor uses where there is no risk of mechanical damage, produced by Al Fanar Company, size 3×185+95 mm2.

• Conductor Type: Copper
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket: Double PVC
• Voltage: 600/1000 volts
• Conductor Shape: Sectoral Stranded (sm)
• Number of Cores: 3.5 (3 Core + Neutral Line)
• Conductor Size (Cross-Sectional Area): (3×185)+95 mm2
• Max DC Conductor Resistance at 20°C: 0.0991 / 0.1930 ohm/km
• Max AC Conductor Resistance at 70°C: 0.1224 / 0.2328ohm/km
• Current Rating Laid in Ground: 292 Ampere
• Current Rating Laid In Ducts: 232 Ampere
• Current Rating Laid in Free Air: 311 Ampere
• Approx Overall Diameter: 49.6 mm
• Weight: 7390 kg/km
• Phase Core Color: (red, yellow, blue, black)
• Standard: IEC 60502-1
