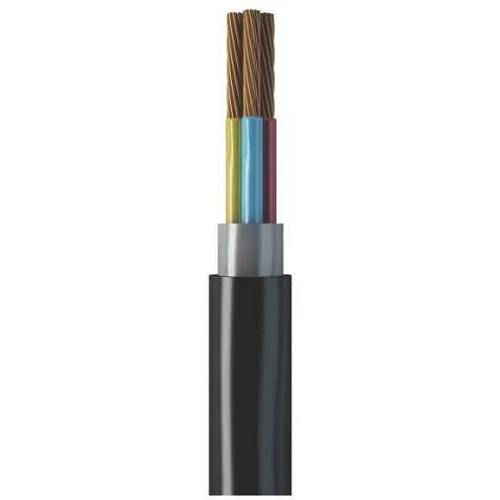

Stranded PVC Copper Cable 3 Core 3×16+10mm, 600/1000V

3.5 core stranded copper cable (CU/PVC/PVC), It is characterized by its reliable performance and durability, in addition to its high resistance to water and humidity, in accordance with the International Electrotechnical Commission (IEC 60502-1) standard, produced by Jeddah Company, size 3×16+10 mm2.

• Conductor Type: Copper
• Insulation Material: PVC Compound (Polyvinyl Chloride)
• Bedding: PVC Compound (or LSHF or PE)
• Jacketing: PVC Compound (or LSHF or PE)
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 3.5 (3 Core + Neutral Line)
• Conductor Size (Cross-Sectional Area): 3×16+10 mm2
• Nominal Insulation Thickness: 1 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 22 mm
• Weight: 983 kg/km
• Max DC Conductor Resistance at 20°C: 1.15 / 1.83 ohm/km
• Current Rating Laid in Ground: 102 Ampere
• Current Rating Laid in Ducts: 84 Ampere
• Current Rating Laid in Free Air: 91 Ampere
• Phase Core Colors: (red, yellow, blue, black)
• Standard: IEC 60502-1
