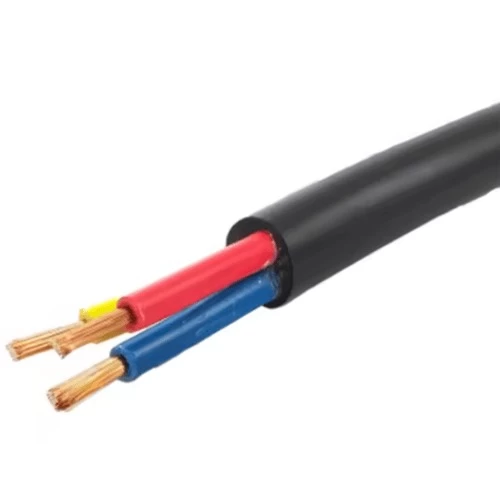

Stranded PVC Copper Cable 3 Core 300 mm, 0.6/1kV, PVC 70°C Insulation, Black Color, 250 M | SCC

Unarmored stranded copper power cable (CU/PVC/PVC), 3 cores, 300mm², low voltage 0.6/1 kV, features low electrical resistance and current stability, Produced by Saudi Cables Company.

• Conductor: Stranded Copper (sm)
• Insulation Material: PVC type 1 to BS6746 rated 70°C
• Outer Sheath: PVC type ST2 to IEC 502
• Voltage: 0.6/1kV
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 300 mm2
• Number of wires: 34
• Nominal Insulation Thickness: 2.4 mm
• Nominal Sheath Thickness: 2.9 mm
• Approx Overall Diameter: 54.6 mm
• Weight: 10065 kg/km
• Standard Length: 250 meters
• Insulation Colors: Red, Yellow, Blue
• Sheath Color: Black
• Standard: IEC: 502
• Catalogue Number: FJH3-26A
