Stranded PVC Copper Cable 3 Core 25 mm, 300/500V | Nohascom

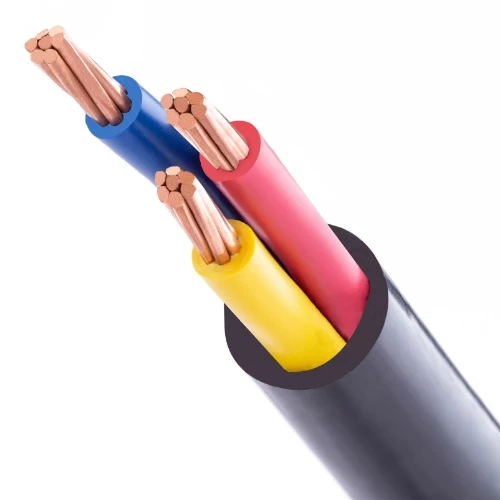

Stranded copper electrical cable (CU/PVC/PVC), 3 core, 25mm2 cross-sectional area, low voltage 300/500V, The cable is lightweight, making it easy to carry and install in hard-to-reach places. It comes in red, yellow and blue, from Nohascom.

• Conductor: Copper
• Conductor Shape: Stranded
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 25 mm2
• Number of Wires: 7
• Wire Diameter: 2.14 mm
• Nominal Insulation Thickness: 1.2
• Thickness of Inner Covering: 0.8 mm
• Nominal Sheath Thickness: 1.6 mm
• Overall Diameter: 23.3 mm
• Weight: 1015 kg/k
• Insulation Color: (Red, yellow, blue)
• Standard: SASO IEC 60227-4
