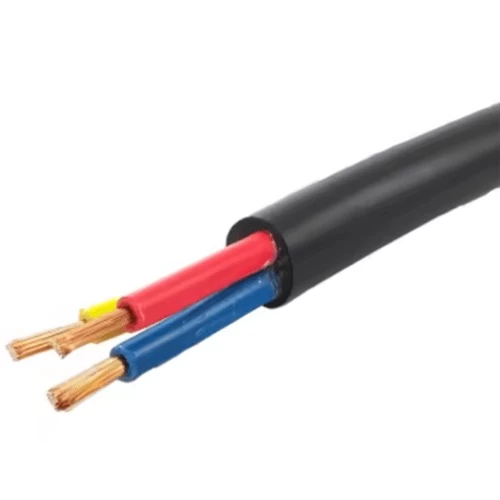

Stranded PVC Copper Cable 3 Core 25 mm, 0.6/1kV, PVC 85°C Insulation, Black Color, 1000 M | SCC

Unarmored stranded copper power cable (CU/PVC/PVC), 3 cores, 25mm², low voltage 0.6/1 kV, ideal for powering industrial motors with high efficiency in power transmission, Produced by Saudi Cables Company.

• Conductor: Stranded Copper
• Insulation Material: Heat resistive PVC type 5 to BS6746 rated 85°C
• Outer Sheath: PVC type ST2 to IEC 502
• Voltage: 0.6/1kV
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 25 mm2
• Number of wires: 6
• Nominal Insulation Thickness: 1.2 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 23.7 mm
• Weight: 1115 kg/km
• Standard Length: 1000 meters
• Insulation Colors: Red, Yellow, Blue
• Sheath Color: Black
• Standard: IEC: 502
• Catalogue Number: EJH3-10A
