Stranded PVC Copper Cable 3 Core 25 mm, 0.6/1kV, 1000 M | RESCAB

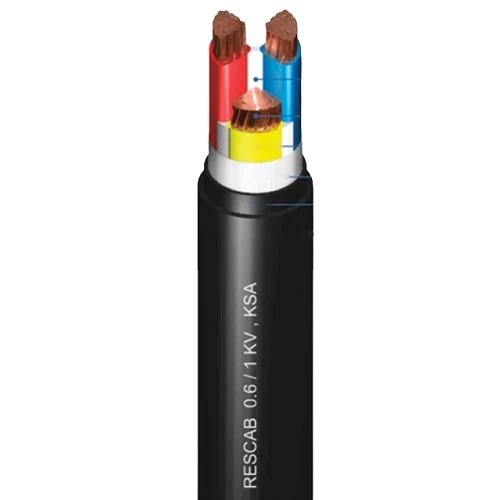

Stranded copper power cable (CU/PVC/PVC), 3 phase, 25mm2 size conductor, 0.6/1kV, UV resistance ensures consistent long-term performance, manufactured by Red Sea Cables Company (RESCAB).
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 25 mm2
- Number of wires: 7
- Nominal Insulation Thickness: 1.2 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 25 mm
- Max DC Conductor Resistance at 20°C: 0.727 ohm/km
- Weight: 1280 kg/km
- Standard Length: 1000 meters
- Phase Core Color: Red, Yellow, Blue
- Standard: IEC 60502-1
Contact Us
Related products
Stranded PVC Copper Cable 3 Core 25 mm, 0.6/1kV, 1000 M | RESCAB
Stranded copper power cable (CU/PVC/PVC), 3 phase, 25mm2 size conductor, 0.6/1kV, Manufactured according to the highest international quality standards, ensuring reliable and safe performance, produced by Red Sea Cables Company (RESCAB).
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 25 mm2
- Number of wires: 7
- Nominal Insulation Thickness: 1.2 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 25 mm
- Max DC Conductor Resistance at 20°C: 0.727 ohm/km
- Weight: 1280 kg/km
- Standard Length: 1000 meters
- Phase Core Color: brown, black, grey
- Standard: BS 5467
