Stranded PVC Copper Cable 3 Core 185 mm, 0.6/1kV, 500 M | Red Sea Cables

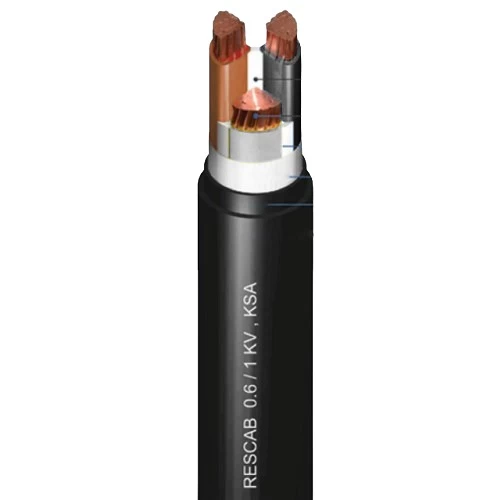

Stranded copper power cable (CU/PVC/PVC), 3 phase, 185mm2 size conductor, 0.6/1kV, Stranded copper ensures efficient conduction of electrical current, reducing power loss, produced by Red Sea Cables Company (RESCAB).
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 185 mm2
- Number of wires: 37
- Nominal Insulation Thickness: 2.0 mm
- Nominal Sheath Thickness: 2.5 mm
- Approx Overall Diameter: 52 mm
- Max DC Conductor Resistance at 20°C: 0.0991ohm/km
- Weight: 6750 kg/km
- Standard Length: 500 meters
- Phase Core Color: Red, Yellow, Blue
- Standard: IEC 60502-1
Contact Us
Related products
Stranded PVC Copper Cable 3 Core 185 mm, 0.6/1kV, 500 M | Red Sea Cables
Stranded copper power cable (CU/PVC/PVC), 3 phase, 185mm2 size conductor, 0.6/1kV, It can be used in many different environments, produced by Red Sea Cables Company (RESCAB).
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 185 mm2
- Number of wires: 37
- Nominal Insulation Thickness: 2.0 mm
- Nominal Sheath Thickness: 2.5 mm
- Approx Overall Diameter: 52 mm
- Max DC Conductor Resistance at 20°C: 0.0991ohm/km
- Weight: 6750 kg/km
- Standard Length: 500 meters
- Phase Core Color: brown, black, grey
- Standard: BS 5467
Contact Us
