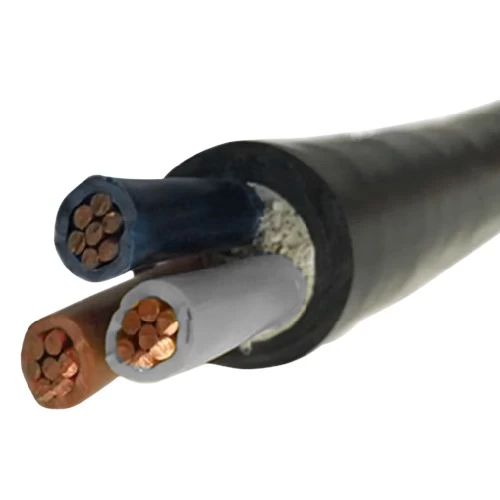

Stranded PVC Copper Cable 3 Core 185 mm, 0.6/1kV, 250 M | BAHRA
Electric Cable 185 mm 3 Core 0.6/1kV CU/PVC/PVC, Stranded Copper, 250 M/Drum, The cable offers a wide range of sizes and colors at the best prices and top quality. Produced by BAHRA Cables Company.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3 Core
- Conductor Size (Cross-Sectional Area): 185 mm2
- Number of Wires: 37
- Nominal Insulation Thickness: 2.0 mm
- Nominal Sheath Thickness: 2.5 mm
- Approx Overall Diameter: 51.8 mm
- Weight: 6197 kg/km
- Standard Length: 250 meters
- Phase Core Colors: Brown, Black, Grey
- Standard: BS 5467
Contact Us
Related products

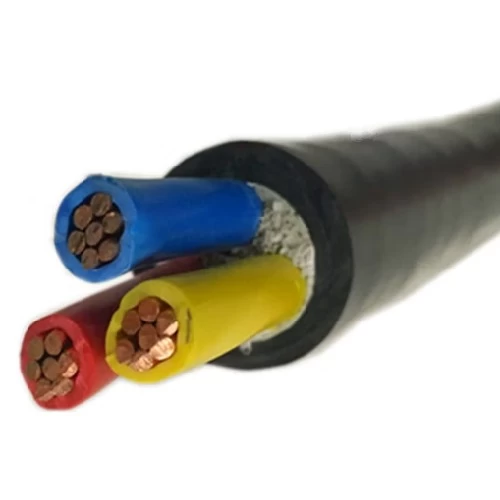

Stranded PVC Copper Cable 3 Core 185 mm, 0.6/1kV, 250 M | BAHRA
Power Cable 185 mm Three Core 0.6/1kV CU/PVC/PVC, Stranded Copper, Length 250 meters, It boasts a wide range of sizes and colors, with the highest quality and best prices. Produced by BAHRA Cables Company.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3 Core
- Conductor Size (Cross-Sectional Area): 185 mm2
- Number of Wires: 37
- Nominal Insulation Thickness: 2.0 mm
- Nominal Sheath Thickness: 2.5 mm
- Approx Overall Diameter: 51.8 mm
- Weight: 6197 kg/km
- Standard Length: 250 meters
- Phase Core Colors: Red, Yellow, Blue
- Standard: IEC 60502-1
Contact Us
