Stranded PVC Copper Cable 3 Core 16 mm, 300/500V, PVC 85°C Insulation, Black Color, 1000 M | Saudi Cable Company

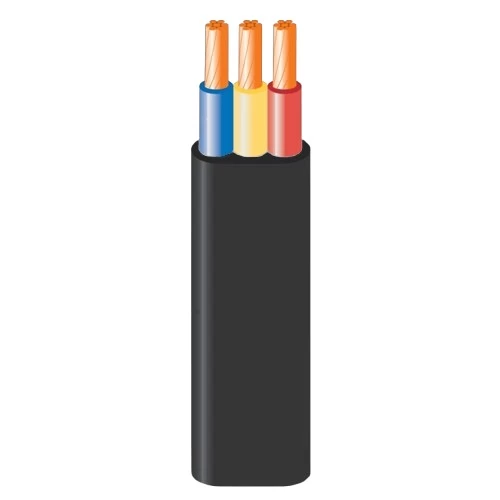

Stranded copper electrical flat cable (CU/PVC/PVC), three core, 16mm² cross-sectional area, insulated with materials that withstand temperatures up to 85°C. The black jacket protects the cable from corrosion and offers excellent flexibility for outdoor applications. Produced by Saudi Cable Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 16mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.3 mm
- Overall Diameter: 26.5×11.0 mm
- Weight: 672 kg/km
- Length: 1000 meter / Coil
- Insulation Color: (Red, Yellow, Blue)
- Sheath Color: Black
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CGF3-09H
Contact Us
Related products
Stranded PVC Copper Cable 3 Core 16 mm, 300/500V, PVC 85°C Insulation, Black Color, 1000 M | Saudi Cable Company

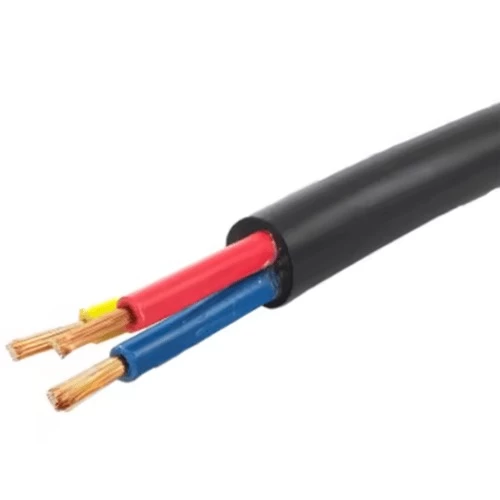

Stranded copper 3 core electric cable (CU/PVC/PVC), 16 sq mm cross section, low voltage 300/500V, PVC 85°C insulation with black sheath, 1000 meters. Stable performance under different operating conditions. Manufactured by Saudi Cable Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 16 mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.4 mm
- Overall Diameter: 19.6 mm
- Weight: 758 kg/km
- Length: 1000 meter / Coil
- Insulation Color: (Red, Yellow, Blue)
- Sheath Color: Black
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CGH3-09H
