Stranded PVC Copper Cable 3 Core 16 mm, 300/500V | Nohascom

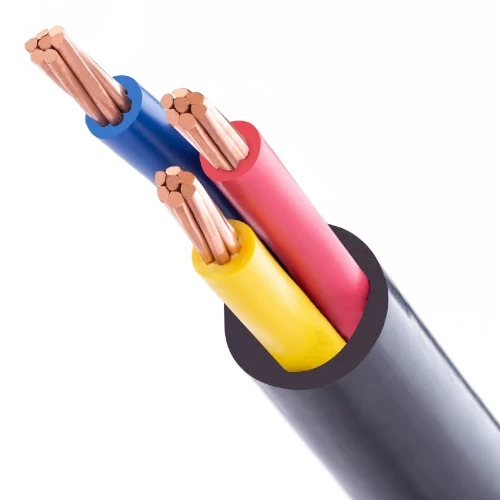

Stranded copper electrical cable (CU/PVC/PVC), 3 core, 16mm2 cross-sectional area, low voltage 300/500V, Thanks to its simple design, the cable can be connected and disconnected easily and quickly, saving time and effort. Red, yellow and blue color, from Nohascom Company.

• Conductor: Copper
• Conductor Shape: Stranded
• Insulation Material: PVC (Polyvinyl Chloride) 70 °C
• Outer Sheath: PVC
• Voltage: 300/500 volts
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 16 mm2
• Number of Wires: 7
• Wire Diameter: 1.75 mm
• Nominal Insulation Thickness: 1
• Thickness of Inner Covering: 0.8 mm
• Nominal Sheath Thickness: 1.4 mm
• Overall Diameter: 20.5 mm
• Weight: 730 kg/k
• Insulation Color: (Red, yellow, blue)
• Standard: SASO IEC 60227-4
