Stranded PVC Copper Cable 3 Core 16 mm, 0.6/1kV | SCC

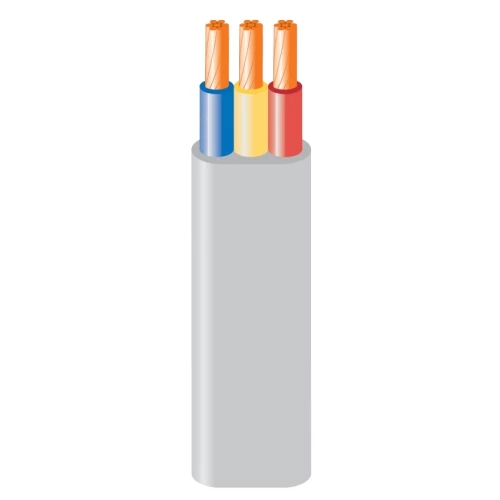

Stranded copper flat cable, 3-core, 2.5mm² (CU/PVC/PVC), insulated up to 70°C with a grey PVC sheath providing strong protection against weather conditions, making it an ideal choice for residential buildings. Supplied in 50-meter rolls. Produced by Saudi Cable Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 70°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 4mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 0.8 mm
- Nominal Sheath Thickness: 1.1 mm
- Overall Diameter: 16.5×7.4 mm
- Weight: 216 kg/km
- Length: 50 meter / Coil
- Insulation Color: (Red, Yellow, Blue)
- Sheath Color: Grey
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CBF3-06H
Contact Us
Related products
Stranded PVC Copper Cable 3 Core 16 mm, 0.6/1kV | SCC

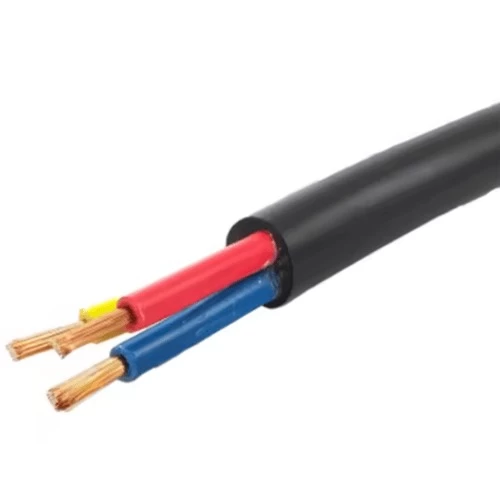

Unarmored stranded copper power cable (CU/PVC/PVC), 3 cores, 16mm², low voltage 0.6/1 kV, used in large projects to supply electrical panels with long-lasting and stable performance. Produced by Saudi Cables Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 1 to BS6746 rated 70°C
- Outer Sheath: PVC type ST2 to IEC 502
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 16 mm2
- Number of wires: 6
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 20.0 mm
- Weight: 755 kg/km
- Standard Length: 1000 meters
- Insulation Colors: Red, Yellow, Blue
- Sheath Color: Black
- Standard: IEC: 502
- Catalogue Number: EJH3-09A
