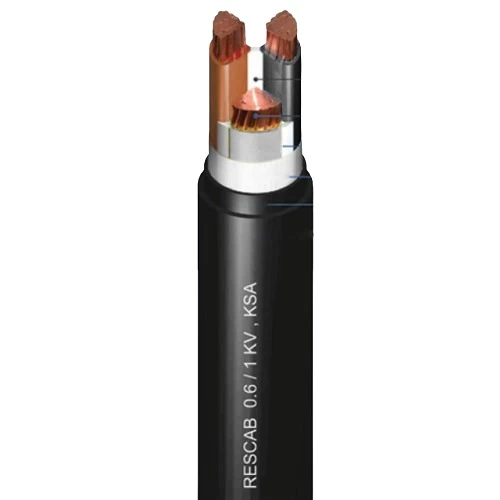

Stranded PVC Copper Cable 3 Core 16 mm, 0.6/1kV, 1000 M | RESCAB
Stranded copper power cable (CU/PVC/PVC), 3 phase, 16mm2 size conductor, 0.6/1kV, It offers excellent value for money, making it an economically viable option for various projects. Produced by Red Sea Cables Company (RESCAB).
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 16 mm2
- Number of wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 22 mm
- Max DC Conductor Resistance at 20°C: 1.15 ohm/km
- Weight: 880 kg/km
- Standard Length: 1000 meters
- Phase Core Color: brown, black, grey
- Standard: BS 5467
Related products

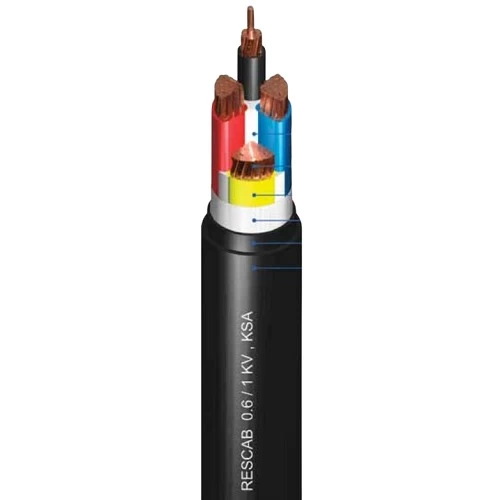

Stranded PVC Copper Cable 3 Core 16 mm, 0.6/1kV, 1000 M | RESCAB
Unarmored stranded copper cable (CU/PVC/PVC), 3 core + neutral line, 3×25+16mm2 size conductor, produced by Red Sea Cables (RESCAB) Company, PVC (polyvinyl chloride) layer forms excellent insulation around the conductor to prevent leakage of electric current.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3.5 Core (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 3cx25 mm2 ) + 16mm2
- Number of Phase Wires: 7
- Number of Neutral Wires: 7
- Nominal Insulation Thickness of Phase: 1.2 mm
- Nominal Insulation Thickness of Neutral: 1.0 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 27 mm
- Max DC Conductor Resistance at 20°C (Ph): 0.727 ohm/km
- Max DC Conductor Resistance at 20°C (Ne): 1.15 ohm/km
- Weight: 1375 kg/km
- Standard Length : 1000 meters
- Phase Core Colors: (Red, Yellow, Blue, Black, Green/Yellow)
- Standard: IEC 60502-1
Related products

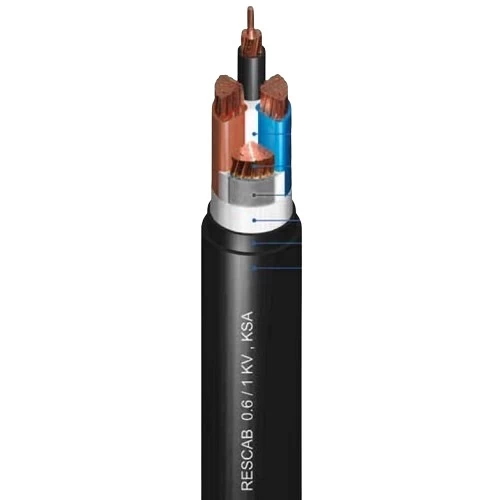

Stranded PVC Copper Cable 3 Core 16 mm, 0.6/1kV, 1000 M | RESCAB
Unarmored stranded copper cable (CU/PVC/PVC), 3 core + neutral line, 3×25+16mm2 size conductor, 0.6/1kV, produced by Red Sea Cables (RESCAB) Company, available in various sizes and colors, ensuring top quality and competitive pricing.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3.5 Core (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 3cx25 mm2 ) + 16mm2
- Number of Phase Wires: 7
- Number of Neutral Wires: 7
- Nominal Insulation Thickness of Phase: 1.2 mm
- Nominal Insulation Thickness of Neutral: 1.0 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 27 mm
- Max DC Conductor Resistance at 20°C (Ph): 0.727 ohm/km
- Max DC Conductor Resistance at 20°C (Ne): 1.15 ohm/km
- Weight: 1375 kg/km
- Standard Length : 1000 meters
- Phase Core Colors: (Blue, Brown, Black, Grey)
- Standard: BS 5467, 6346
Related products
Stranded PVC Copper Cable 3 Core 16 mm, 0.6/1kV, 1000 M | RESCAB
Unarmored stranded copper cable (CU/PVC/PVC), 3 core + neutral line, 3×35+16mm2 size, produced by Red Sea Cables (RESCAB) Company, the outer sheath provides additional protection for the cable against shocks, abrasion, and corrosion.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3.5 Core (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 3cx35 mm2 ) + 16mm2
- Number of Phase Wires: 7
- Number of Neutral Wires: 7
- Nominal Insulation Thickness of Phase: 1.2 mm
- Nominal Insulation Thickness of Neutral: 1.0 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 29 mm
- Max DC Conductor Resistance at 20°C (Ph): 0.524 ohm/km
- Max DC Conductor Resistance at 20°C (Ne): 1.15 ohm/km
- Weight: 1690 kg/km
- Standard Length : 1000 meters
- Phase Core Colors: (Red, Yellow, Blue, Black, Green/Yellow)
- Standard: IEC 60502-1
