Stranded PVC Copper Cable 3 Core 16 mm, 0.6/1kV, 1000 M | BAHRA
Electric Cable 16 mm Three Core 0.6/1kV CU/PVC/PVC, Stranded Copper, 1000 meter/Drum, PVC cables provide an effective and popular solution for delivering electrical power in a variety of applications, as they are low cost and durable, produced by Bahra Cables Company.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3 Core
- Conductor Size (Cross-Sectional Area): 16 mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 20.2 mm
- Weight: 852 kg/km
- Standard Length: 1000 meters

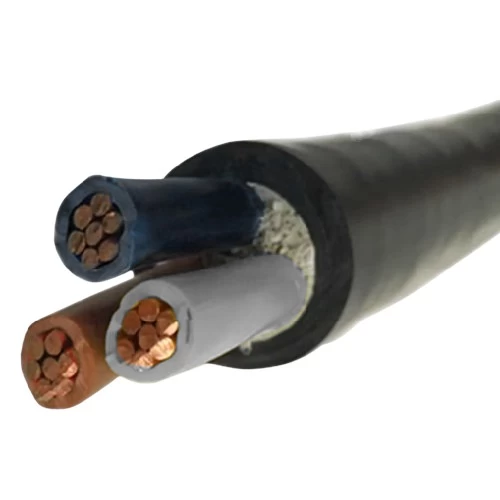

- Phase Core Colors: Brown, Black, Grey
- Standard: BS 5467
Contact Us
Related products
Stranded PVC Copper Cable 3 Core 16 mm, 0.6/1kV, 1000 M | BAHRA
Power Cable 16 sq mm 3 Phase 0.6/1kV CU/PVC/PVC, Stranded Copper, 1000 M/Drum, It is offered at the best prices, high quality, and a variety of colors and sizes, produced by BAHRA Cables Company.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3 Core
- Conductor Size (Cross-Sectional Area): 16 mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 20.2 mm
- Weight: 852 kg/km
- Standard Length: 1000 meters

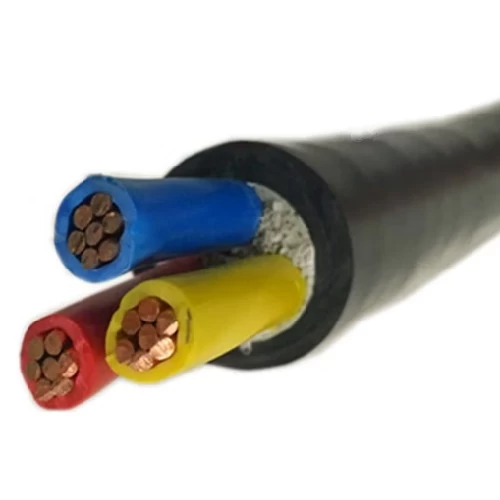

- Phase Core Colors: Red, Yellow, Blue
- Standard: IEC 60502-1
Contact Us
