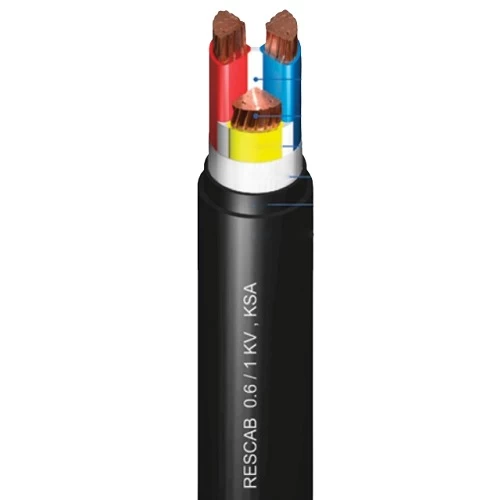

Stranded PVC Copper Cable 3 Core 150 mm, 0.6/1kV, 500 M | Red Sea Cables
Stranded copper power cable (CU/PVC/PVC), 3 phase, 150mm2 size conductor, 0.6/1kV, It can withstand relatively high temperatures without affecting its performance, making it suitable for use in environments with variable temperatures. Produced by Red Sea Cables Company (RESCAB).
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 150 mm2
- Number of wires: 37
- Nominal Insulation Thickness: 1.8 mm
- Nominal Sheath Thickness: 2.3 mm
- Approx Overall Diameter: 48 mm
- Max DC Conductor Resistance at 20°C: 0.124 ohm/km
- Weight: 5470 kg/km
- Standard Length: 500 meters
- Phase Core Color: brown, black, grey
- Standard: BS 5467
