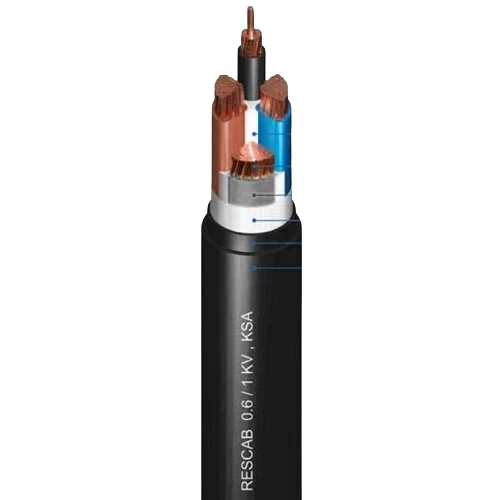

Stranded PVC Copper Cable 3 Core 150 mm, 0.6/1kV, 250 M | RESCAB
Unarmored stranded copper electrical cable (CU/PVC/PVC), 3 core + neutral line, 3×300 + 150sq mm size conductor, 0.6/1kV, produced by Red Sea Cables (RESCAB) Company, they are distinguished by their economical cost, reliable performance, and durability.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3.5 Core (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 3cx300 mm2 ) + 150mm2
- Number of Phase Wires: 61
- Number of Neutral Wires: 37
- Nominal Insulation Thickness of Phase: 2.4 mm
- Nominal Insulation Thickness of Neutral: 1.8 mm
- Nominal Sheath Thickness: 3.0 mm
- Approx Overall Diameter: 65 mm
- Max DC Conductor Resistance at 20°C (Ph): 0.0601 ohm/km
- Max DC Conductor Resistance at 20°C (Ne): 0.124 ohm/km
- Weight: 12090 kg/km
- Standard Length : 250 meters
- Phase Core Colors: (Blue, Brown, Black, Grey)
- Standard: BS 5467, 6346
Contact Us
Related products

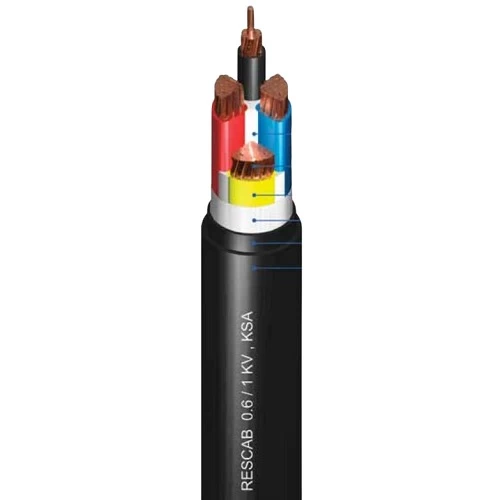

Stranded PVC Copper Cable 3 Core 150 mm, 0.6/1kV, 250 M | RESCAB
Unarmored stranded copper electrical cable (CU/PVC/PVC), 3 core + neutral line, 3×300 + 150sq mm size conductor, 0.6/1kV, produced by Red Sea Cables (RESCAB) Company, provides exceptional electrical, thermal, and mechanical properties, making it ideal for various power applications.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3.5 Core (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 3cx300 mm2 ) + 150mm2
- Number of Phase Wires: 61
- Number of Neutral Wires: 37
- Nominal Insulation Thickness of Phase: 2.4 mm
- Nominal Insulation Thickness of Neutral: 1.8 mm
- Nominal Sheath Thickness: 3.0 mm
- Approx Overall Diameter: 65 mm
- Max DC Conductor Resistance at 20°C (Ph): 0.0601 ohm/km
- Max DC Conductor Resistance at 20°C (Ne): 0.124 ohm/km
- Weight: 12090 kg/km
- Standard Length : 250 meters
- Phase Core Colors: (Red, Yellow, Blue, Black)
- Standard: IEC 60502-1
