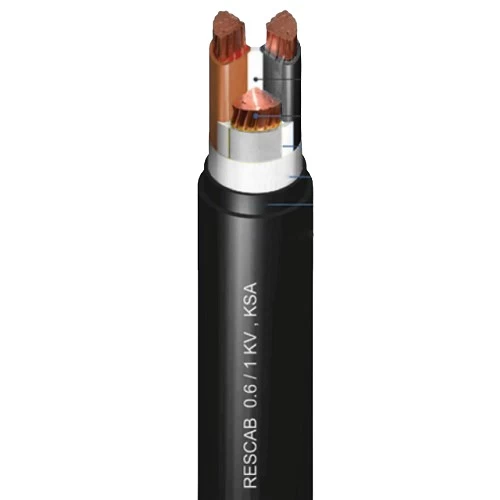

Stranded PVC Copper Cable 3 Core 120 mm, 0.6/1kV, 500 M | Red Sea Cables
Stranded copper power cable (CU/PVC/PVC), 3 phase, 120mm2 size conductor, 0.6/1kV, Ensures maximum safety thanks to the insulating PVC layer that protects against electric shocks and ensures safe and reliable operation, produced by Red Sea Cables Company (RESCAB).
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 120 mm2
- Number of wires: 37
- Nominal Insulation Thickness: 1.6 mm
- Nominal Sheath Thickness: 2.2 mm
- Approx Overall Diameter: 43 mm
- Max DC Conductor Resistance at 20°C: 0.153 ohm/km
- Weight: 4420 kg/km
- Standard Length: 500 meters
- Phase Core Color: Red, Yellow, Blue
- Standard: IEC 60502-1
Contact Us
Related products
Stranded PVC Copper Cable 3 Core 120 mm, 0.6/1kV, 500 M | Red Sea Cables
Stranded copper power cable (CU/PVC/PVC), 3 phase, 120mm2 size conductor, 0.6/1kV, Provides excellent protection against moisture and water, making it suitable for use in humid locations and direct exposure to weather conditions. Produced by Red Sea Cables Company (RESCAB).
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 120 mm2
- Number of wires: 37
- Nominal Insulation Thickness: 1.6 mm
- Nominal Sheath Thickness: 2.2 mm
- Approx Overall Diameter: 43 mm
- Max DC Conductor Resistance at 20°C: 0.153 ohm/km
- Weight: 4420 kg/km
- Standard Length: 500 meters
- Phase Core Color: brown, black, grey
- Standard: BS 5467
