Stranded PVC Copper Cable 3 Core 10 mm, 300/500V | SCC

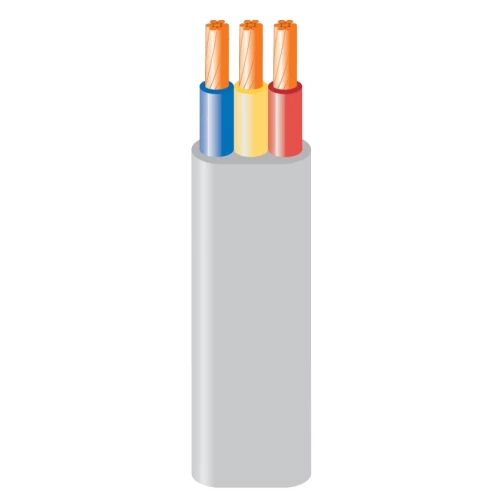

Stranded copper electrical flat cable (CU/PVC/PVC), three core, 10mm² cross-sectional area, insulated with materials that withstand temperatures up to 70°C. The grey jacket provides protection against environmental factors, making it the ideal choice for residential applications. Produced by Saudi Cable Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 70°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 10mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.2 mm
- Overall Diameter: 22.5×9.6 mm
- Weight: 461 kg/km
- Length: 2000 meter / Coil
- Insulation Color: (Red, Yellow, Blue)
- Sheath Color: Grey
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CBF3-08H
Related products
Stranded PVC Copper Cable 3 Core 10 mm, 300/500V | SCC

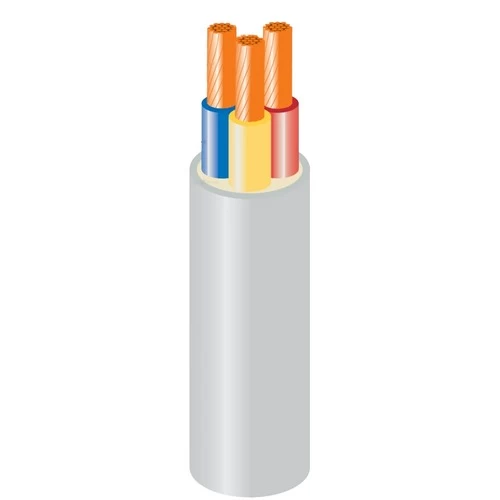

Stranded copper 3 core electric cable (CU/PVC/PVC), 10 sq mm cross section, low voltage 300/500V, PVC 70°C insulation with gray sheath, 2000 meters. Ideal for residential and industrial use. Manufactured by Saudi Cable Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 10 mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.4 mm
- Overall Diameter: 17.3 mm
- Weight: 534 kg/km
- Length: 2000 meter / Coil
- Insulation Color: (Red, Yellow, Blue)
- Sheath Color: Grey
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CBH3-08H
Related products
Stranded PVC Copper Cable 3 Core 10 mm, 300/500V | SCC

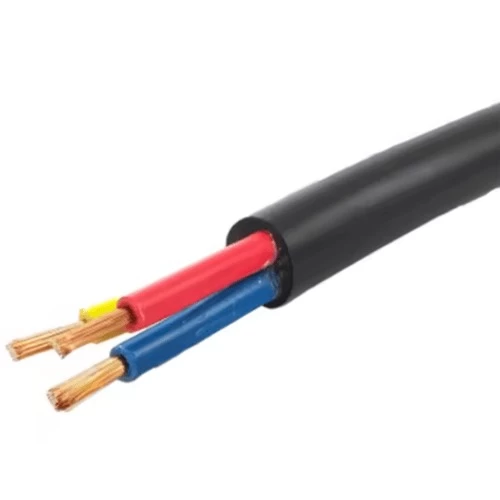

Stranded copper 3 core electric cable (CU/PVC/PVC), 10 sq mm cross section, low voltage 300/500V, PVC 85°C insulation with black sheath, 2000 meters. Provides high-quality insulation and perfect durability. Manufactured by Saudi Cable Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 10 mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.4 mm
- Overall Diameter: 17.3 mm
- Weight: 534 kg/km
- Length: 2000 meter / Coil
- Insulation Color: (Red, Yellow, Blue)
- Sheath Color: Black
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CGH3-08H
Related products
Stranded PVC Copper Cable 3 Core 10 mm, 300/500V | SCC
Stranded copper 3 core electric cable (CU/PVC/PVC), 10 sq mm cross section, low voltage 300/500V, PVC 85°C insulation with gray sheath, 1000 meters. Reliable electrical performance and excellent environmental resistance. Manufactured by Saudi Cable Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 10 mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.4 mm
- Overall Diameter: 17.3 mm
- Weight: 534 kg/km
- Length: 1000 meter / Coil
- Insulation Color: (Red, Yellow, Blue)
- Sheath Color: Grey
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CGH3-08H
Related products
Stranded PVC Copper Cable 3 Core 10 mm, 300/500V | SCC
Stranded copper 3 core electric cable (CU/PVC/PVC), 10 sq mm cross section, low voltage 300/500V, PVC 70°C insulation with gray sheath, 1000 meters. Ideal design for indoor and outdoor applications. Manufactured by Saudi Cable Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 10 mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.4 mm
- Overall Diameter: 17.3 mm
- Weight: 534 kg/km
- Length: 1000 meter / Coil
- Insulation Color: (Red, Yellow, Blue)
- Sheath Color: Gray
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CBH3-08H
Related products
Stranded PVC Copper Cable 3 Core 10 mm, 300/500V | SCC
Stranded copper 3 core electric cable (CU/PVC/PVC), 10 sq mm cross section, low voltage 300/500V, PVC 85°C insulation with gray sheath, 2000 meters. Supports high-efficiency electricity transmission with added protection. Manufactured by Saudi Cable Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 10 mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.4 mm
- Overall Diameter: 17.3 mm
- Weight: 534 kg/km
- Length: 2000 meter / Coil
- Insulation Color: (Red, Yellow, Blue)
- Sheath Color: Grey
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CGH3-08H
Related products
Stranded PVC Copper Cable 3 Core 10 mm, 300/500V | SCC
Stranded copper electrical flat cable (CU/PVC/PVC), 3 core, 10mm² cross-sectional area, insulated with materials that withstand temperatures up to 85°C. The black jacket ensures comprehensive protection against weather and corrosion in harsh environments. Produced by Saudi Cable Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 10mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.2 mm
- Overall Diameter: 22.5×9.6 mm
- Weight: 461 kg/km
- Length: 1000 meter / Coil
- Insulation Color: (Red, Yellow, Blue)
- Sheath Color: Black
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CGF3-08H
Related products
Stranded PVC Copper Cable 3 Core 10 mm, 300/500V | SCC
Stranded copper electrical flat cable (CU/PVC/PVC), 3 core, 10mm² cross-sectional area, insulated with materials that withstand temperatures up to 85°C. The grey jacket offers good protection against environmental factors, making it suitable for heavy industrial applications. Produced by Saudi Cable Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 10mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.2 mm
- Overall Diameter: 22.5×9.6 mm
- Weight: 461 kg/km
- Length: 2000 meter / Coil
- Insulation Color: (Red, Yellow, Blue)
- Sheath Color: Grey
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CGF3-08H
Related products
Stranded PVC Copper Cable 3 Core 10 mm, 300/500V | SCC

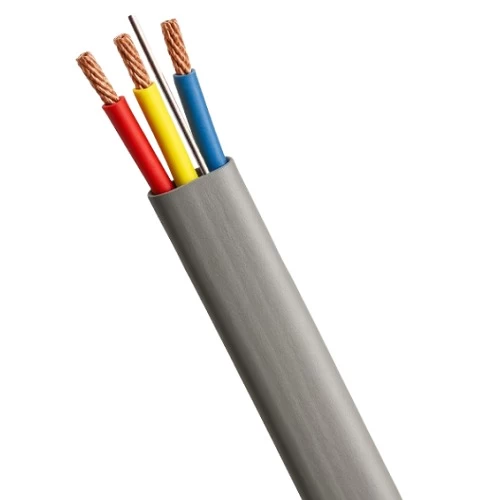

Stranded copper electrical flat cable with earth conductor (CU/PVC/PVC), 10mm, 85°C insulation, gray sheath, 1000m length, low voltage 300/500V. Manufactured by Saudi Cable Company (SCC). PVC insulation provides ideal protection against electrical currents, while the sheath offers protection from external environmental factors.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 10mm2
- Number of Wires: 7
- Earth Continuity Conductor (no.xmm): 7×0.84mm
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.2 mm
- Overall Diameter: 25.5×9.6 mm
- Weight: 522 kg/km
- Length: 1000 meter / Coil
- Insulation Color: (Red, Yellow, Blue)
- Sheath Color: Gray
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CGG3-08H
Related products
Stranded PVC Copper Cable 3 Core 10 mm, 300/500V | SCC

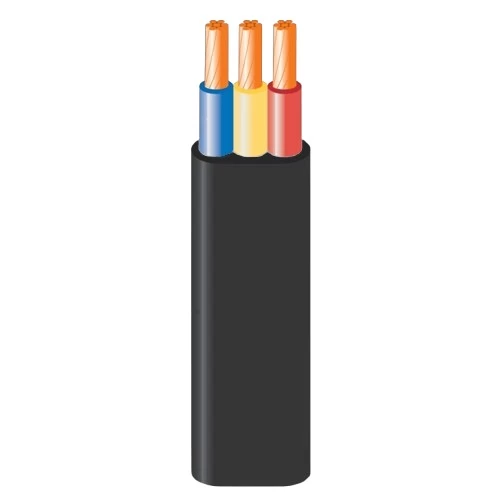

Stranded copper electrical flat cable (CU/PVC/PVC), 3 core, 10mm² cross-sectional area, insulated with materials that withstand temperatures up to 70°C. The black jacket ensures protection against corrosion and environmental factors in outdoor use. Produced by Saudi Cable Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 70°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 10mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.2 mm
- Overall Diameter: 22.5×9.6 mm
- Weight: 461 kg/km
- Length: 1000 meter / Coil
- Insulation Color: (Red, Yellow, Blue)
- Sheath Color: Black
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CBF3-08H
Related products
Stranded PVC Copper Cable 3 Core 10 mm, 300/500V | SCC

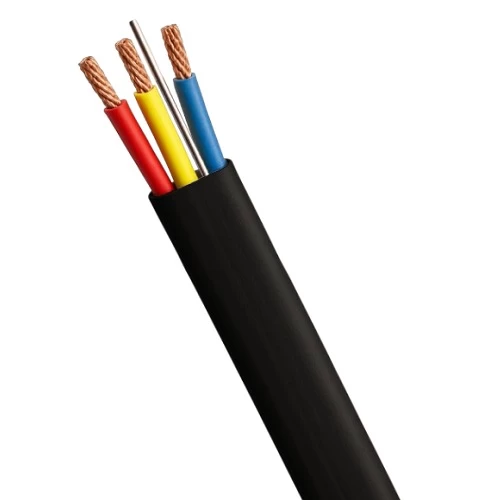

Stranded copper electrical flat cable with earth conductor (CU/PVC/PVC), 10mm, 85°C insulation, black sheath, 2000m length, low voltage 300/500V. Manufactured by Saudi Cable Company (SCC). Available in a variety of sizes and colors with the highest quality and best prices.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 10mm2
- Number of Wires: 7
- Earth Continuity Conductor (no.xmm): 7×0.84mm
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.2 mm
- Overall Diameter: 25.5×9.6 mm
- Weight: 522 kg/km
- Length: 2000 meter / Coil
- Insulation Color: (Red, Yellow, Blue)
- Sheath Color: Black
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CGG3-08H
