Stranded PVC Copper Cable 3 Core 10 mm, 300/500V, PVC 70°C Insulation, Black Color, 2000 M | Saudi Cable Company

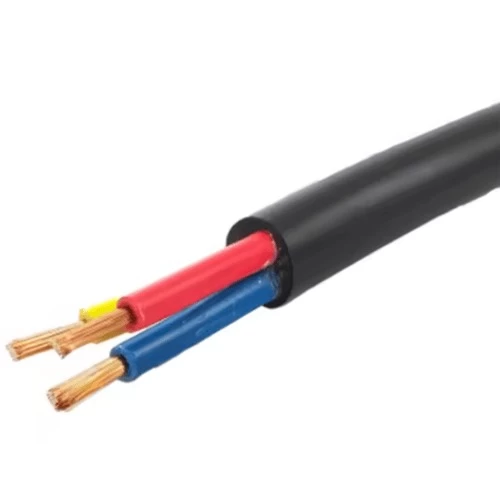

Stranded copper 3 core electric cable (CU/PVC/PVC), 10 sq mm cross section, low voltage 300/500V, PVC 70°C insulation with black sheath, 2000 meters. Provides high stability for electrical circuits. Manufactured by Saudi Cable Company.
- Conductor: Stranded Copper
- Insulation Material: PVC type 5 to BS:6746 rated 85°C
- Outer Sheath: PVC type ST2 to IEC:502
- Voltage: 300/500 volts
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 10 mm2
- Number of Wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.4 mm
- Overall Diameter: 17.3 mm
- Weight: 534 kg/km
- Length: 2000 meter / Coil
- Insulation Color: (Red, Yellow, Blue)
- Sheath Color: Black
- Standards: SASO:55 specification and similar to BS:6004-1984 specification
- Catalogue Number: CBH3-08H
Contact Us
Related products
Stranded PVC Copper Cable 3 Core 10 mm, 300/500V, PVC 70°C Insulation, Black Color, 2000 M | Saudi Cable Company

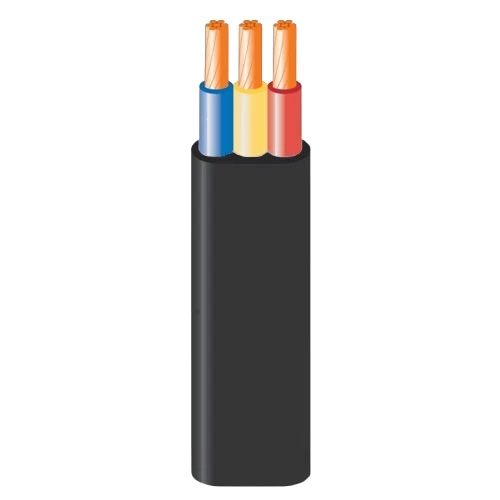

Stranded copper electrical flat cable (CU/PVC/PVC), three core, 10mm² cross-sectional area, insulated with materials that withstand temperatures up to 70°C. The black jacket provides protection against environmental impacts in outdoor applications. Produced by Saudi Cable Company.
