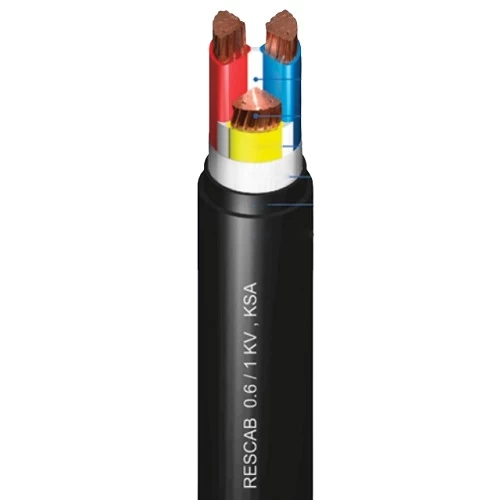

Stranded PVC Copper Cable 3 Core 10 mm, 0.6/1kV, 1000 M | RESCAB
Stranded copper power cable (CU/PVC/PVC), 3 phase, 10mm2 size conductor, 0.6/1kV, Ideal for a variety of electrical connection applications, combining high conductivity, excellent insulation, mechanical protection, durability and flexibility, produced by Red Sea Cables Company (RESCAB).
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 10 mm2
- Number of wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 20 mm
- Max DC Conductor Resistance at 20°C: 1.83 ohm/km
- Weight: 675 kg/km
- Standard Length: 1000 meters
- Phase Core Color: brown, black, grey
- Standard: BS 5467
Related products
Stranded PVC Copper Cable 3 Core 10 mm, 0.6/1kV, 1000 M | RESCAB
Stranded copper power cable (CU/PVC/PVC), 3 phase, 10mm2 size conductor, 0.6/1kV, It is subject to strict quality control processes at all stages of production, ensuring its compliance with international standards and reducing the possibility of manufacturing defects, produced by Red Sea Cables Company (RESCAB).
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3
- Conductor Size (Cross-Sectional Area): 10 mm2
- Number of wires: 7
- Nominal Insulation Thickness: 1.0 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 20 mm
- Max DC Conductor Resistance at 20°C: 1.83 ohm/km
- Weight: 675 kg/km
- Standard Length: 1000 meters
- Phase Core Color: Red, Yellow, Blue
- Standard: IEC 60502-1
Related products
Stranded PVC Copper Cable 3 Core 10 mm, 0.6/1kV, 1000 M | RESCAB
Unarmored stranded copper power cable (CU/PVC/PVC), 3 core + neutral line, 3×16+10mm2 size wire, 0.6/1kV, produced by Red Sea Cables (RESCAB) Company, provides exceptional electrical, thermal, and mechanical properties, making it ideal for various power applications.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3.5 Core (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 3cx16 mm2 ) + 10mm2
- Number of Phase Wires: 7
- Number of Neutral Wires: 7
- Nominal Insulation Thickness of Phase: 1.0 mm
- Nominal Insulation Thickness of Neutral: 1.0 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 23 mm
- Max DC Conductor Resistance at 20°C (Ph): 1.15 ohm/km
- Max DC Conductor Resistance at 20°C (Ne): 1.83 ohm/km
- Weight: 1030 kg/km
- Standard Length : 1000 meters
- Phase Core Colors: (Blue, Brown, Black, Grey)
- Standard: BS 5467, 6346
Related products
Stranded PVC Copper Cable 3 Core 10 mm, 0.6/1kV, 1000 M | RESCAB
Unarmored stranded copper power cable (CU/PVC/PVC), 3 core + neutral line, 3×16+10mm2 size wire, produced by Red Sea Cables (RESCAB) Company, they are distinguished by their economical cost, reliable performance, and durability.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 3.5 Core (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 3cx16 mm2 ) + 10mm2
- Number of Phase Wires: 7
- Number of Neutral Wires: 7
- Nominal Insulation Thickness of Phase: 1.0 mm
- Nominal Insulation Thickness of Neutral: 1.0 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 23 mm
- Max DC Conductor Resistance at 20°C (Ph): 1.15 ohm/km
- Max DC Conductor Resistance at 20°C (Ne): 1.83 ohm/km
- Weight: 1030 kg/km
- Standard Length : 1000 meters
- Phase Core Colors: (Red, Yellow, Blue, Black, Green/Yellow)
- Standard: IEC 60502-1
