Stranded PVC Copper Cable 3 Core 1.5 mm, 0.6/1kV | SCC

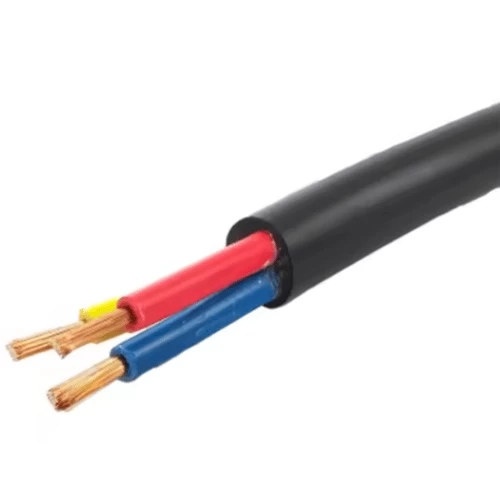

Unarmored stranded copper power cable (CU/PVC/PVC), 3 cores, 1.5mm², low voltage 0.6/1 kV, perfect for lighting connections in residential and commercial buildings with flexible installation, Produced by Saudi Cables Company.

• Conductor: Stranded Copper
• Insulation Material: PVC type 1 to BS6746 rated 70°C
• Outer Sheath: PVC type ST2 to IEC 502
• Voltage: 0.6/1kV
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 1.5 mm2
• Number of wires: 7
• Nominal Insulation Thickness: 0.8 mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 13.1 mm
• Weight: 220 kg/km
• Standard Length: 1000 meters
• Insulation Colors: Red, Yellow, Blue
• Sheath Color: Black
• Standard: IEC: 502
• Catalogue Number: CJH3-04A
